| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Flange |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Household Usage |

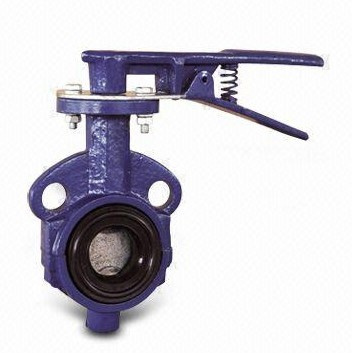

Product Description
Key Specifications/Special Features:

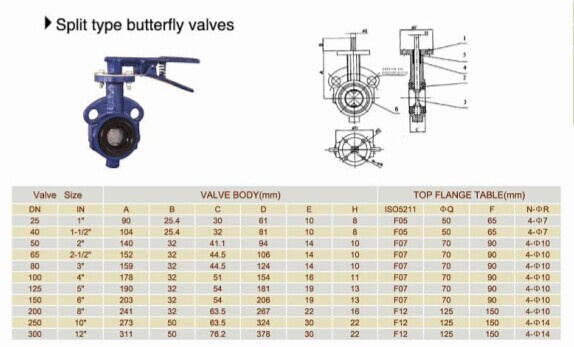

Size: From DN25 to DN1200 available
Materials:
Body: Ductile iron, cast iron, stainless steel and carbon steel
Disc: Ductile iron, bronze and stainless steel
Shaft: SS 316/416/420/410, 17-4pH and Monel
Seat: EPDM, NBR, PTFE, RPTFE, viton and silicone
Connections:
Wafer, lug and flange types
Standards: ANSI, DIN, JIS, BS according to customer's requirements
APC Industries, a leading manufacturer specialized in industrial valves and Marine valves. It was established in 1999. APC main products is butterfly valves for industry application ( wafer type butterfly valve, Lug type butterfly valve, Double flanged butterfly valve, rubber-coated butterfly valve), Double Eccentric Butterfly Valves and Tri-Eccentric butterfly valve for Marine application, and these High performance butterfly valve has gain the Monopoly in China. API Check valve, API Gate valve, API Ball valve for oil and gas application. Y-strainer, Electric Actuators and pipe fittings.
Now we have gained the ISO 9001: 2000 International Quality Systems, Europe's PED/ CE marked product, Germany' S Pressure Equipment Ordinance TRD100/WO, Norwegian DNV Classification Society Factory and many classification societies such as CCS, British LR Certificates, API 6D /607 Certificates, and FM/UL Certificates for fire fighting valves.
The company carries out the design, manufacture and testing of valves according to the international standards such as ANSI. DIN. BS, JIS.
Warmly welcome to visit our factory.
APC Industries, a leading manufacturer specialized in industrial valves and Marine valves. It was established in 1999. APC main products is butterfly valves for industry application ( wafer type butterfly valve, Lug type butterfly valve, Double flanged butterfly valve, rubber-coated butterfly valve), Double Eccentric Butterfly Valves and Tri-Eccentric butterfly valve for Marine application, and these High performance butterfly valve has gain the Monopoly in China. API Check valve, API Gate valve, API Ball valve for oil and gas application. Y-strainer, Electric Actuators and pipe fittings.
Now we have gained the ISO 9001: 2000 International Quality Systems, Europe's PED/ CE marked product, Germany' S Pressure Equipment Ordinance TRD100/WO, Norwegian DNV Classification Society Factory and many classification societies such as CCS, British LR Certificates, API 6D /607 Certificates, and FM/UL Certificates for fire fighting valves.
The company carries out the design, manufacture and testing of valves according to the international standards such as ANSI. DIN. BS, JIS.
Warmly welcome to visit our factory.
