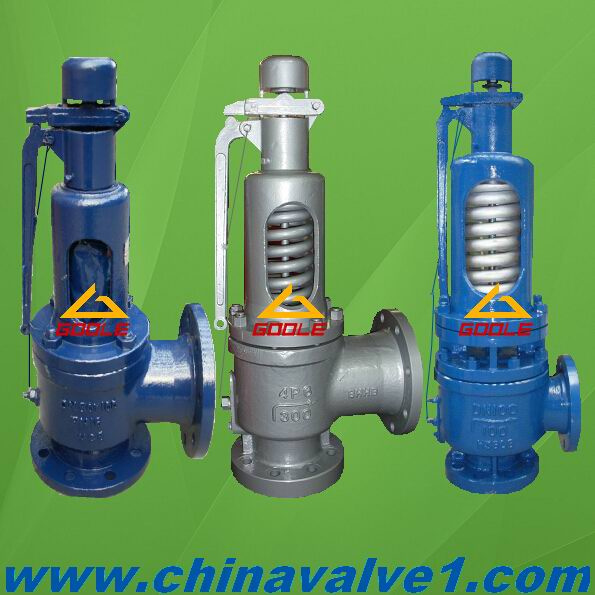

Spring Loaded Safety Valve, DIN Pressure Relief Valve

Name: Spring Loaded Safety Valve, DIN Pressure Relief Valve
Brand: Valve Industry
SKU: 674523802
Availability: InStock
Rating: 4.6 (43 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

China Yongjia Goole Valve Co., Ltd.

Showroom Product Company Profile

Prod Model:	ARI 902, A48Y\900\901\902\912\911
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

900 Series DIN standard Safety Valve are mainly applied to the industries such as petroleum & Natural gas, Chemistry, Electric, Metallurgy & Burning gas. As the super-pressure protecting equipment, It has following advantages: High precision of action, Good recycling function, Turning back to seat fast, Easy operating and maintaining, etc.

901 Type
Closed Cap
Closed top Cover
With Level

902 Type
Opening Cap
Opening Top Cover
With Level

911 Type
Closed Cap
Gas-Sealed Top Cover
Without Level

912 Type
Closed Cap
Opening Top Cover
With Level

Type	Nominal Pressure	Body Material	Nominal Diameter	Working Temp.
901/902/911/912	PN40/16	1.0619+N	DN20/32-DN150/250	-10 --450 Deg C
901/911	PN40/16	1.4408	DN20/32-DN100/150	-60 --400 Deg C

DN	20/32	25/40	32/50	40/65	50/80	65/100	80/125	100/150	120/200/	150/250
Throat Diameter do(mm)	18	22	29	36	45	58	72	80	100	125
Orifice Area Ao(mm)	254	398	661	1018	1590	2688	4072	6362	8825	12266
Weight (Kg)	8.5	10	14	20	28	40	53	80	125	165

901, 902, 911, 912 Type Safety Valve
DN× DN1		20/32	25/40	32/50	40/65	50/80	65/100	80/125	100/150	120/200/	150/250
D	PN16	105	115	140	150	165	185	200	220	250	285
D	PN40	105	115	140	150	165	185	200	235	220	300
K	PN16	75	85	100	110	125	145	160	180	210	240
K	PN40	75	85	100	110	125	145	160	190	220	250
B		20	20	20	21	22	24	26	28	31	34
D1	PN16	140	150	165	185	200	220	250	285	340	405
K1		100	110	125	145	160	180	210	240	295	355
B1		19	19	20	20	20	20	22	22	27	29
L		85	100	110	115	120	140	160	180	200	220
L1		95	105	115	140	150	170	195	220	250	285
≈ H		298	311	315	355	405	555	580	690	845	890
Vent(with plug)		G3/8"			G1/2"

Yongjia Goole Valve Co., Ltd is a specialized and modernized industrial valve Supplier. We can also provide filters and pipe fittings for project services.

We manufacture and offer:

Safety relief valve(Our hot products, we have price & performance advantages about safety valves, and we can offer you the best price and quality you want): Spring loaded safety valve, high pressure and high temperature safety valve, pilot operated safety valve, DIN Standard Safety Valve, etc...

Pressure Reducing Valve: Pilot Operated reducing valves, Direct Acting and Bellow Type Reducing Valves. etc.

Steam Trap: Free Float steam trap, Lever Ball Float steam trap, thermodynamic and thermostatic steam trap, inverted bucket steam trap, etc.

Besides, Other valves and pipe fittings like DIN Bellow sealed globe valves, Y Type Strainer also can be offered by us.

Our products are widely used in petroleum, chemical, metallurgy, power stationand some other fields. We can also design and manufacture the non-standard products according to Customers' requirements.

Our Products are in strict accordance with ISO 9001 International Quality Management System. We also have a complete inspection system to ensure the quality of our products.

We would like to serve our esteemed customers with superior products, reasonable price and complete sales services. We pledge we will be your most reliable business partner always.
