| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Power Supply: |
AC Solenoid Valve |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |

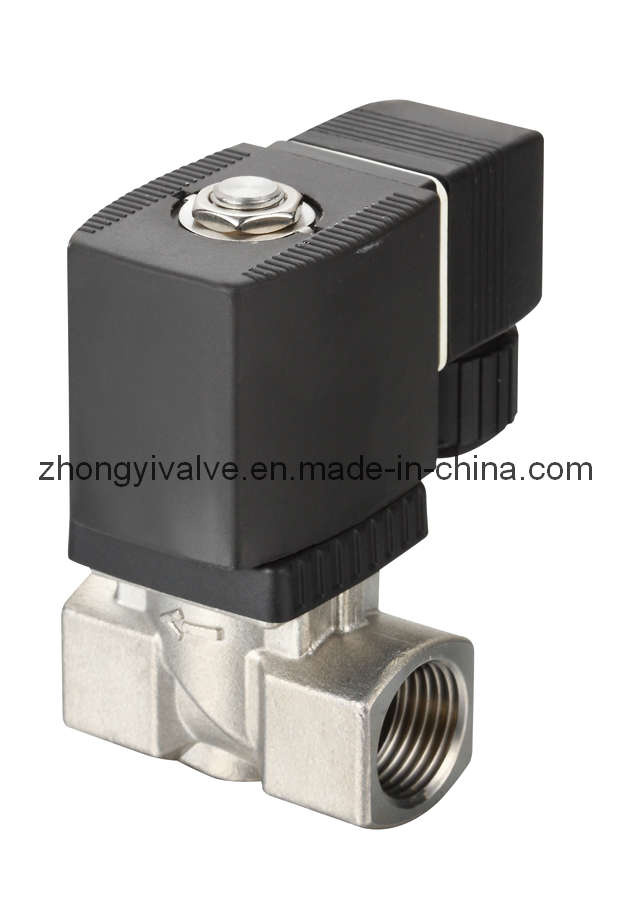

Product Description
Operated way: Pilot-operated
Control way: Nc(standard), no
Pipe size: G1/4~g2(standard)
Dn: Dn10~50mm
Pn: The highest pn: 1.6mpa
Medium: Neutral gas and liquid
Viscosity: ≤ 21mm2/s
Medium temperature: -10~+80 (+130 degree centigrade, )
Circumstance temperature: -10~+50degree centigrade material: Stainless steel
Sealing material: NBR(standard)\FKM\EPDM
Standard voltage: AC: 220V(50/60Hz) DC: 24V
Changeable of the voltage: ± 10%
Working period: Coil can work continuously
Connecting: Junction box(plug), IP65
Installation: Head is up straight
|
Standard: |
|
Item no. |
DN
(mm) |
PIPE SIZE
(G) |
PN
(MPa) |
Kv
(m3/h) |
circumstance temperature |
medium temperature |
|
2231008BCr |
10 |
1/4 |
0.02~1.0 |
1.4 |
-10~+50 |
-10~+80 |
|
2231010BCr |
10 |
3/8 |
0.02~1.0 |
1.4 |
|
2231015BCr |
10 |
1/2 |
0.02~1.0 |
1.4 |
|
2231020-20Cr |
22 |
3/4 |
0~1.0 |
6.4 |
|
2231025Cr |
22 |
1 |
0~1.0 |
6.4 |
|
2231032Cr |
40 |
1 1/4 |
0.02~1.6 |
18 |
|
2231040Cr |
40 |
1 1/2 |
0.02~1.6 |
18 |
|
2231050Cr |
50 |
2 |
0.02~1.6 |
28 |
|
2211020Cr |
23 |
3/4 |
0.02~1.6 |
7.1 |
|
2211025Cr |
23 |
1 |
0.02~1.6 |
7.1 |
