| Prod Model: |
1/4"-4" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-4" |
| Connection Form: |
Welding |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Water Industrial Usage |
Product Description

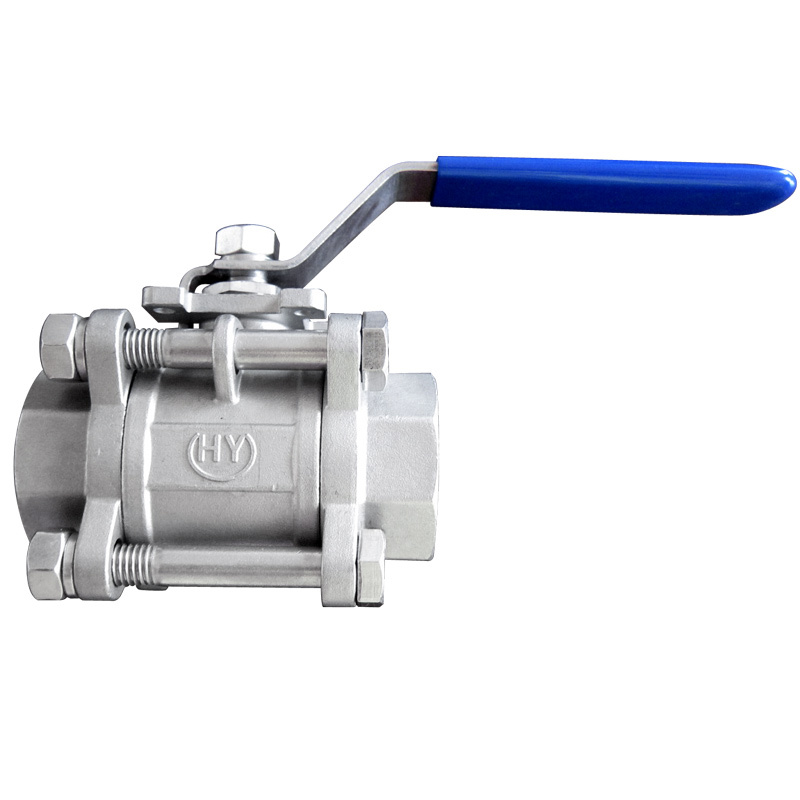

Ball Valve type: Floating Ball Valve.
Ball Valve Dimension: 1/4"-4"
Ball Valve body: Stainless Steel 304/316, CF8/CF8M.
Ball Valve working pressure: 1000psi, 2000psi,
Ball Valve end type: THREAD(NPT/BSP/BSPT/DIN2999) and socket welding.
Avaliable in carbon steel material.
100% hydraulic pressure testing.
Ball Valve design standard: API ANSI, DIN JIS
Nominal Pressure: PN64(1000PSI)
Working Temperature: -10 degrees centigrade~150 degrees centigrade
Application: W. O. G
Thread Standard: BSP. BSPT. NPT. DIN2999
Sealing Material: PTFE
Material: 304.316. CF8. CF8M. CF3M. WCB
if not factory,what we are.
We can provide not only flange and valve ,but we can also provide techinical support.
Welcome to visit our factory at anytime.
Our company offers a wide range of flanges like PL, SW, BL, WN, SO, LJ,T threaded Flange etc., which is precisely engineered in accordance with international quality standards totally. These flanges are highly durable, corrosion resistant and reliable. Our range of flanges finds application in industries like engineering, construction, chemical, oil field and power plant. Valve is another main product in our company including ball valve, butterfly valve, and gate valve and so on.
We also supply fasteners such as bolt, nut, gasket and stud, valve fittings, pump parts.
OEM service is ok.
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment.？
Your Success, Our Glory:
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
|
3PC Ball Valve/BW |
|
|
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2 " |
2 1/2 " |
3" |
4" |
|
φd |
11 |
12 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
75 |
100 |
|
H |
42.5 |
42.5 |
49.6 |
58.1 |
61.3 |
78.3 |
82.5 |
90.9 |
114.5 |
124.0 |
176.0 |
|
W |
101.5 |
101.5 |
101.5 |
124.0 |
124.0 |
152.0 |
152.0 |
190.0 |
242.0 |
242.0 |
327.0 |
|
L |
50.4 |
50.4 |
61.4 |
70.2 |
79.6 |
93.0 |
102.0 |
124.2 |
156.2 |
179.2 |
218.4 |
|
17 |
Lock Device |
304 |
1 |
|
16 |
Handle sleeve |
plastic |
1 |
|
15 |
Handle |
304 |
1 |
|
14 |
Spring Washer |
304 |
4 |
|
13 |
Nuts |
304 |
4 |
|
12 |
Nuts |
304 |
4 |
|
11 |
Nuts |
304 |
1 |
|
10 |
Spring Washer |
304 |
1 |
|
9 |
Gland |
304 |
1 |
|
8 |
Stem packing |
PTFE |
1 |
|
7 |
Washer |
PTFE |
1 |
|
6 |
Sealing Ring |
PTFE |
2 |
|
5 |
Seat |
PTFE |
2 |
|
4 |
Stem |
316 |
1 |
|
3 |
Ball |
CF8M |
1 |
|
2 |
Bonnet |
CF8M |
2 |
|
1 |
Body |
CF8M |
1 |
|
ITEM |
Part Name |
Material |
Qty |
|
|
|
3PC Ball Valve/SW |
|
|
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2 " |
2 1/2 " |
3" |
4" |
|
φd |
11 |
12 |
15 |
20 |
25 |
32 |
38 |
50 |
65 |
76 |
100 |
|
φd1 |
14.2 |
17.6 |
21.7 |
27.1 |
33.8 |
42.6 |
48.8 |
61.1 |
73.8 |
89.8 |
110 |
|
L |
50.4 |
50.4 |
61.4 |
70 |
79.6 |
93 |
102 |
124 |
156 |
179.2 |
218.4 |
|
L2 |
10 |
10 |
10 |
14 |
14 |
15 |
15 |
19 |
21 |
24 |
35 |
|
H |
48.0 |
48 |
50 |
60 |
64 |
79 |
85 |
87 |
117 |
125 |
173 |
|
W |
103 |
103 |
103 |
127 |
127 |
154 |
154 |
192 |
244 |
244 |
330 |
|
TORQUE |
4-5 |
4-5 |
6-8 |
8-10 |
12-15 |
18-20 |
25-30 |
35-45 |
55-65 |
80-90 |
140-160 |
|
16 |
Nuts |
304 |
4 |
|
15 |
Spring Washer |
304 |
4 |
|
14 |
Bolt |
304 |
4 |
|
13 |
Handle Sleeve |
Plastic |
1 |
|
12 |
Handle |
304 |
1 |
|
11 |
Nuts |
304 |
1 |
|
10 |
Spring Washer |
304 |
1 |
|
9 |
Gland |
304 |
1 |
|
8 |
Stem packing |
PTFE |
1 |
|
7 |
Washer |
PTFE |
1 |
|
6 |
Sealing Ring |
PTFE |
2 |
|
5 |
Seat |
PTFE |
2 |
|
4 |
Stem |
316 |
1 |
|
3 |
Ball |
CF8M |
1 |
|
2 |
Bonnet |
CF8M |
2 |
|
1 |
Body |
CF8M |
1 |
|
ITEM |
Part Name |
Material |
Qty |
|
|
|
3PC Ball Valve/Female Thread |
|
|
G |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2 " |
2 1/2 " |
3" |
4" |
|
DN |
8 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
D |
9.2 |
12.5 |
15 |
20 |
25 |
32 |
38 |
50 |
65 |
80 |
100 |
|
L |
52 |
57 |
69 |
73 |
85 |
102 |
113 |
135 |
159 |
179 |
223 |
|
W |
82 |
82 |
100 |
100 |
148 |
148 |
190 |
190 |
280 |
280 |
280 |
|
E |
10.0 |
10 |
13.5 |
14.5 |
.17 |
19 |
19 |
23 |
26.5 |
30 |
36 |
|
H |
47 |
51 |
56 |
58.5 |
74 |
79 |
92 |
103 |
118 |
118 |
154 |
|
SW |
19 |
22 |
26.5 |
32 |
40 |
48 |
56 |
68 |
86 |
99 |
125 |
|
16 |
Handle Sleeve |
Plastic |
1 |
|
15 |
Lock Device |
304 |
1 |
|
14 |
Nuts |
304 |
1 |
|
13 |
Spring Washer |
304 |
1 |
|
12 |
Handle |
304 |
1 |
|
11 |
Gland |
304 |
1 |
|
10 |
Stem packing |
PTFE |
1 |
|
9 |
Washer |
PTFE |
1 |
|
8 |
Stem |
304 |
1 |
|
7 |
Bolt |
304 |
4(8) |
|
6 |
Nuts |
304 |
4(8) |
|
5 |
Spring Washer |
304 |
4(8) |
|
4 |
Body |
CF8M |
1 |
|
3 |
Ball |
316 |
1 |
|
2 |
Seat |
PTFE |
2 |
|
1 |
Bonnet |
CF8M |
2 |
|
ITEM |
Part Name |
Material |
Qty |
