Stainless Steel Manual Welded Three-Piece Butterfly Valve (DIN)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
DINRD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Design: |
DIN |
| Working Pressure: |
0~10bar |
| Sealing Material (Standard): |
Vmq |
| Sealing Material (Option): |
EPDM/FPM |
| Working Temperature Of Vmq: |
-50 to 180 Degree Celsius |
| Working Temperature Of EPDM: |
-20 to 135 Degree Celsius |
| Working Temperature Of FPM: |
-30 to 230 Degree Celsius |
| Inside Surface Treatment: |
More Than or Equal to 0.4-0.8 Micrometer |
| Surface Treatment: |
More Than or Equal to 0.8-1.6 Micrometer |
| Connection Form: |
Welding |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Food,Beverage, Pharmaceutical, Chemical Industry |
| Material Of Seal Surface: |
Vmq, FPM, EPDM,PTFE |
Product Description

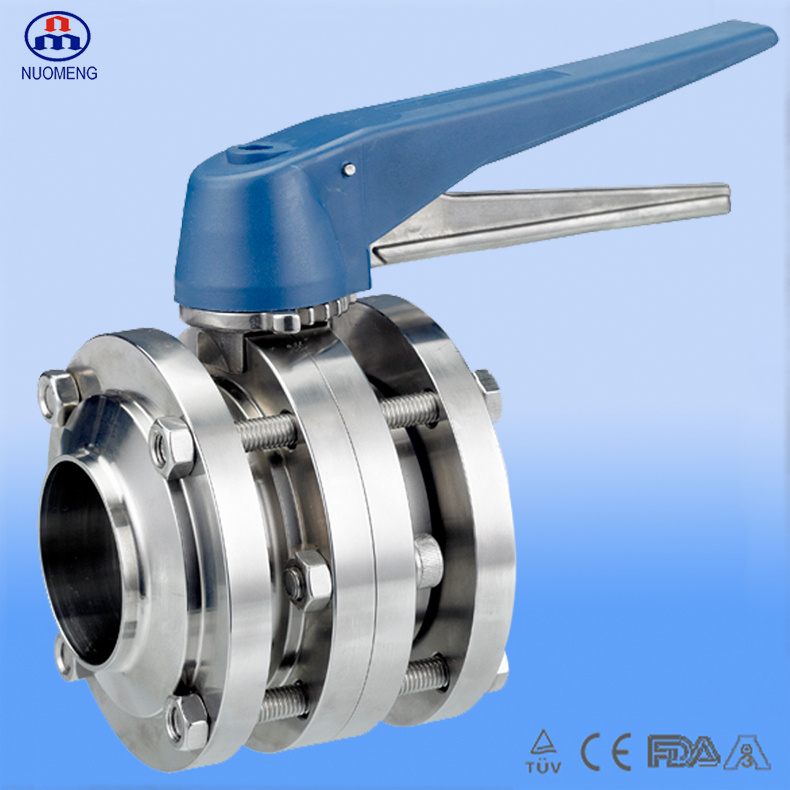

Sanitary Stainless Steel Manual Welded Three-Piece Butterfly Valve
Application:
The series of this valve is a kind of sanitary manual which are widely used in stainless steel pipeline system to control and regulate medium flow.
Work principle:
This kind of valve are handled by manual. NUOMENG offers three types handle, such as stainless steel muti-position handle, plastic muti-position handle, and pulling handle.
Muti-position handle regullates the valve by 15 degree in its open or close 12 seats achiening control of medium flow purpose.
Pulling handle regulates the valve through four multi-function positioning, in its open or close four position, also achieves control of medium flow purpose.
Material:
Steel parts: Stainless steel 304, stainless steel 316L
Seal: Silicone(VMQ), Fluoroelastomer(FPM), EPDM
Stanard Design:
Various standards of valves can be provide can be provided to clients: DIN, 3A, SMS, ISO/IDF, BS/RJ, ASME/BPE etc.
The parts of valve includes two pieces body of valve, disc, gasket of valve disc, bush, two flanges, two gaskets of flange and the entire valve is assemble together with bolts and nuts..
| Size | A | B | C | T |
| DN10 | 78.0 | 12.0 | 100.0 | 1.5 |
| DN15 | 78.0 | 18.0 | 100.0 | 1.5 |
| DN20 | 78.0 | 22.0 | 100.0 | 1.5 |
| DN25 | 78.0 | 28.0 | 100.0 | 1.5 |
| DN32 | 86.0 | 34.0 | 100.0 | 1.5 |
| DN40 | 90.0 | 40.0 | 100.0 | 1.5 |
| DN50 | 106.0 | 52.0 | 102.0 | 1.5 |
| DN65 | 124.0 | 70.0 | 106.0 | 2.0 |
| DN80 | 139.0 | 85.0 | 108.0 | 2.0 |
| DN100 | 159.0 | 104.0 | 114.0 | 2.0 |
| DN125 | 186.0 | 129.0 | 140.0 | 2.0 |
| DN150 | 225.0 | 154.0 | 160.0 | 2.0 |
