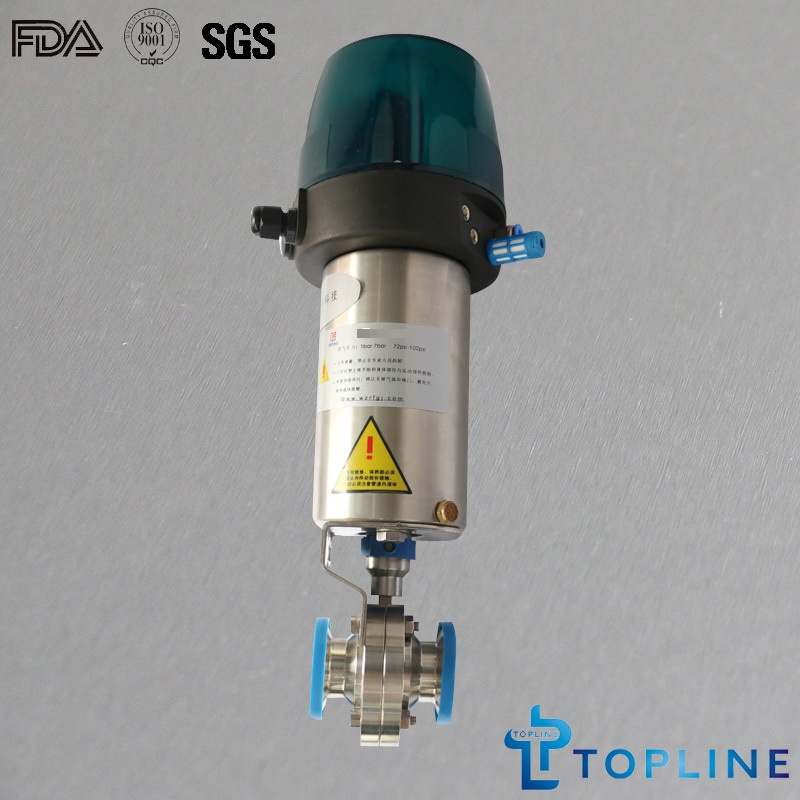

Stainless Steel Sanitary Pneumatic Butterfly Valve with C-Top
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TPSBTFLV008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn10-Dn200&1/2"-8" |
| Structure: |
Centre Sealing |
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Food, Beer, Beverage, Pharmacy |
| Connection Form: |
Tri-Clamp |
| Seal Form: |
Soft Sealed |
| Work Pressure: |
<10bar |
| Working Temperature: |
<120°c |
| Valve Body: |
CNC Forged |
Product Description
*Sanitary Butterfly Valve
*Material: AISI304, AISI316L
*Standard: DIN/SMS/3A/ISO/IDF/RJT
*Size: DN10-DN200&1/2"-8"
*Three drive forms: Normally closed, normally opened and opened & closed by two air flues separately.
*Application: Used for the control of liquid flow in food, beer, beverage, pharmacy industries.
*Operating Principle: The butterfly valve can be operated automatically through an actuator or manually with a handle. The handle blocks the valve in the "open" or "closed" position, although there are also other models with intermediate positions. The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the disc.
For more detail information, pls don't hesitate to contact us. We can also produce according to your drawings and specifictions
| Connecting Ends | weld&clamp&thread&flanged |
| Standard | DIN, SMS, 3A, ISO, IDF, RJT, BS |
| Available Sizes | DN10-DN150, 1/2"-8" |
| Metal Material | Parts in contact with fluid | 304, 316L (DIN 1.4301, 1.4304) Forging |
| Other parts | 304 |
| Seal Material | Options | Silicone, EPDM, FPM, NBR |
| Operation | Manual | Pulling handle, Multiposition |
| Pneumatic | NC, NO, A/A |
| Electric |
|
| Pressure | Max. working pressure | 10 bar |
| Air supply pressure | 5~8 bar |
| Surface Finish | Internal surface | Ra < 0.8 μm |
| External surface | Ra <1.6 μm |
As a manufacturer, TopLine Company specialize in the supply of the following sanitary flow control components:
Stainless Steel Sanitary valves ( butterfly, check, ball, CPM, diaphragm, sampling, seat valves, ect)
Stainless Steel Sanitary fittings ( elbow, tee, clamp, pipe holder, ferrule, union, manway, cleaning ball, sight glass, filter, etc)
Stainless Steel Sanitary pump ( centrifugal, rotary lobe, CIP)
Stainless Steel Pipe Series( stainless steel Sanitary Welding pipe, Seamless pipe)
Topline services for food, beverage, dairy, chemical, bioth, pharmaceutical, etc...
We believes in "What we say, what we do", honesty is the only way leading to long term business relationship. We always trying our best for customers and put ourselves into customers' shoes. Making business with customers, making friends with them.
Topline has been in this business since 2009. The boss has worked for sanitary valve industry since 2000. After so many years, we are becoming more and more professional in this field. We know more about customers' requirement and offer best services.
As a manufacturer, TopLine Company specialize in the supply of the following sanitary flow control components:
Stainless Steel Sanitary valves ( butterfly, check, ball, CPM, diaphragm, sampling, seat valves, ect)
Stainless Steel Sanitary fittings ( elbow, tee, clamp, pipe holder, ferrule, union, manway, cleaning ball, sight glass, filter, etc)
Stainless Steel Sanitary pump ( centrifugal, rotary lobe, CIP)
Stainless Steel Pipe Series( stainless steel Sanitary Welding pipe, Seamless pipe)
Topline services for food, beverage, dairy, chemical, bioth, pharmaceutical, etc...
We believes in "What we say, what we do", honesty is the only way leading to long term business relationship. We always trying our best for customers and put ourselves into customers' shoes. Making business with customers, making friends with them.
Topline has been in this business since 2009. The boss has worked for sanitary valve industry since 2000. After so many years, we are becoming more and more professional in this field. We know more about customers' requirement and offer best services.
