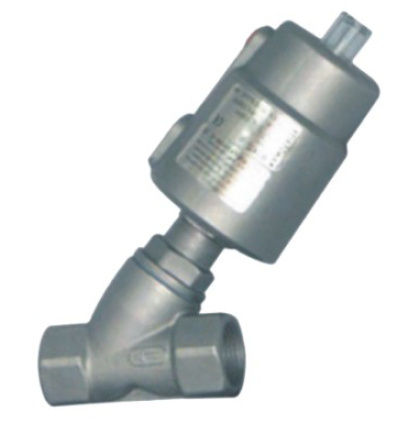

Stainless Steel Thread Pneumatic Angle Seat Valve
| Price: |
US $ 18/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/8"-3" |
| Connection Form: |
Thread |
Product Description
Thread Pneumatic Angle Seat Valve
1. Regarding Select
1) Function: Normally Open
2) Connection: Thread
3) PPS Body Actuator Suitable for temperature of: +5 degree~+130 degree
4)Bon-Return Spring Double Acting Actuator
5) Adjustable traveling postion for high or low flow rate
6) Manual Switch for urgent
7)Pressue: 0-16Bar
8) Body Material: Stainless steel
9)Seat: Teflon (PTFE)
10) Actuator: Stainless steel
11) Actuator Penumatic: Air or others
2 Suggestion of purchasing:
1) Please select returnable or spring-returnable for open and close
2)Selectable spares:
(1)solo-magnatic valve
(2) Double Maganetic Valve
(3)Valve opsition Feedbacker
(4) Pneumatic equipment
(5) Please select anti-expolsive type for sepcial condistion
| Product name | Thread Pneumatic Angle Seat Valve |
| 1)Body Material | SS304/SS316 |
| 2)Size | 3/8"-3" |
| 3)Certificate | ISO9001: 2000,CE |
| 4)Max Pressure | PN16 |
| 5)Connection Ends | Thread,Clamp ending,Flange |
| 9)Sealing | PTFE, RPTFE, PPL |
| Our advantage | Survival by quality and development by credibility.
Quality first, customer upmost ! |
| 100% leakage tested at 100 psi air under water |
| Pure Teflon seals and seats |
| Can do OEM products |
| Delivery time | usual 20 days around and can negotiate as per order qty |
| Shipping port | Ningbo, Shanghai |
| Term of Payment | 30% TT deposit, the balance is paid before shipping the goods |
| Package detail | inner CTN, ourside ply-wooden case |
| MOQ | 10 PCS/size |
| Gurantee Period | 18 monthes |
| Capacity to produce | 100, 000 PCS/week |
WENZHOU YUZHENG VALVE Co., Ltd has been a manufacturer of Stainless Steel Ball Valves and Pipe Fittings since 1998. With the concept of "Customer First", we have achieved stable and fast development, we will keep on innovation and expand our business all over the world. It is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
The articles we produce including Stainless Ball Valve, Check Valve, Gate Valve, Strainer, Pipe Fittings and so on. All of them are ISO9001, CE approved. Yuzheng company also been inspected and approved by SGSThe standard of thread are, BSPP, BSPT, NPT, therefore our products can match the requirement of customers from different district. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. They are widely exported to Southeast of Asia, Middle East, Europe, South America and other areas.
Our strict production and professional sales team will be your guarantee during the cooperation, please don't hesitate to join us if you are specialized in the products.
WENZHOU YUZHENG VALVE Co., Ltd has been a manufacturer of Stainless Steel Ball Valves and Pipe Fittings since 1998. With the concept of "Customer First", we have achieved stable and fast development, we will keep on innovation and expand our business all over the world. It is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
The articles we produce including Stainless Ball Valve, Check Valve, Gate Valve, Strainer, Pipe Fittings and so on. All of them are ISO9001, CE approved. Yuzheng company also been inspected and approved by SGSThe standard of thread are, BSPP, BSPT, NPT, therefore our products can match the requirement of customers from different district. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. They are widely exported to Southeast of Asia, Middle East, Europe, South America and other areas.
Our strict production and professional sales team will be your guarantee during the cooperation, please don't hesitate to join us if you are specialized in the products.
