Stainless Steel Welding Forged Body General Needle Valve

Name: Stainless Steel Welding Forged Body General Needle Valve
Brand: Valve Industry
SKU: 765741155
Availability: InStock
Rating: 4.6 (147 reviews)

Price:	US $ 25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

VAFINE Fluid Technology Co., Ltd. (China)

Showroom Product Company Profile

Prod Model:	N64 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PTFE: -65°f To 450°f:	(-54oc to 232oc)
Power:	Manual
Material:	Stainless Steel
Pressure:	High Pressure
Standard:	Standard
Media:	Oil
Media Temperature:	High Temperature

Product Description

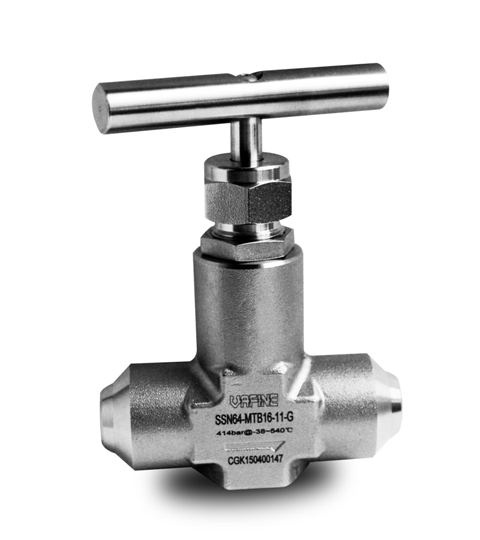

Stainless Steel welding Forged body General Needle Valve

N64 Series-General Needle Valve

Maximum working pressure:6000 psig (414 bar)

Temperature:
PTFE: -65°F to 450°F (-54ºC to 232ºC)
Grafoil: -65°F to 1200°F (-54ºC to 649ºC)

Forged body

Two-piece stem design:avoiding the media contact with thread

lubricant and non rotating lower stem extends valve life

Upper and lower stem hardened

Panel mounting

Stainless steel handle with square upper stem and lock nut to ensure high torque operation

Every VAFINE valve is tested with nitrogen for maximum working pressure.

About VAFINE

VAFINE stems from 'Valves and Fittings are Fine'. VAFINE specialized in producing and designing top-quality instrument valves and fittings. As a specialist in the Fluid & Control System Industry, VAFINE is devoting time, effort and resources to supply better technology and service that customer can rely on.

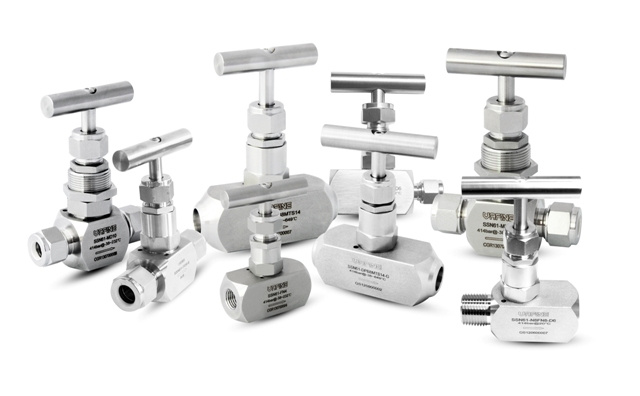

VAFINE product lines include general instrument valves and fittings, high pressure valves and fittings, gas valves and fittings, sampling systems and customized valves and fittings. Our products are widely used in instrumentation systems, hydraulic systems, fluid power control systems for fields like petroleum, chemical, natural gas, electricity, shipbuilding, nuclear power, water treatment. Through achieving internationally accredited certifications, VAFINE is using our expertise to meet customers' expectation.

Mission

We dedicate to be the first choice for fluid control solutions by providing the lowest cost, shortest delivering time, and offering the top-class products.
