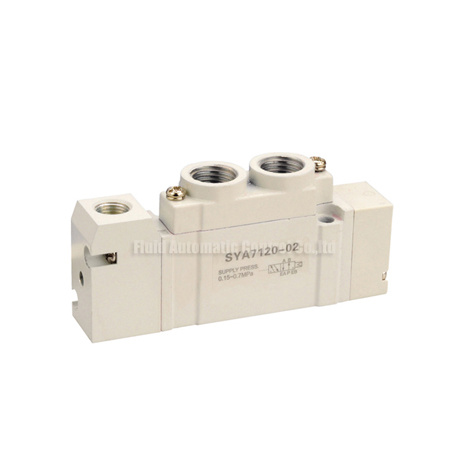

SYA Pneumatic Air Control Valve M5,G1/8,G1/4,G3/8
| Price: |
US $ 6/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
SYA5120-1/4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Size: |
M5X0.8,G1/8,G1/4,G3/8 |
| Type: |
Pilot Operated |
| Connection Form: |
Thread |
| Valve Structure: |
Pilot Piston Structure |
| Application: |
Industrial Usage |
| Power Supply: |
AC DC |
| Usage: |
Air Directional Control |
| Material: |
Aluminum Alloy |
Product Description
*SYA series Air control valve SMC interchangeable
*Aluminum alloy valve body
*Two position Five way
*Motion pattern Air operated Pilot
*Port size M5x0.8,G1/8,G1/4,G3/8
*Compact design small volume
*High working frequency up to 50cycle/Sec
*Fast respond,long service life cycle
ORDERING CODE |
| SYA5 | 120 | 1/4 |
| Type | Function type | Port size |
| SYA3:SY3000 Series SMC type Air operated valve | 120:Two Position Five Way Single Acting | M5:M5x0.8 |
| SYA5:SY5000 Series SMC type Air operated valve | 220:Two Position Five way Double Acting | 1/8:G1/8" |
| SYA7:SY7000 Series SMC type Air operated valve | 320:Two Position Five Way Double Acting Center Close | 1/4:G1/4" |
| SYA9:SY9000 Series SMC type Air operated valve | 420:Two Position Five Way Double Acting Center Exhuasting | 3/8:G3/8" |
| 520:Two Position Five Way Double Acting Center Pressure |
| SPECIFICATION |
| Model no | SYA Series |
| Working Medium | Compressed 40 Micron Filtered Air |
| Body Material | Aluminum Alloy |
| Position And Way Numbers | Two Position-Five Way |
| Motion Pattern | Air Operated |
| Port Size(Main body) | M5x0.8 G1/8 G1/4 G3/8 |
| Pressure Endurance | 1.05MPa |
| Working Pressure | 0.15~0.8MPa |
| Operating Temperature | 5~60ºC |
| Maximum Working Frequency | 50cycle/Sec |
| Minimum Actuating time | 0.05Sec |
| Lubrication | Not Required |
