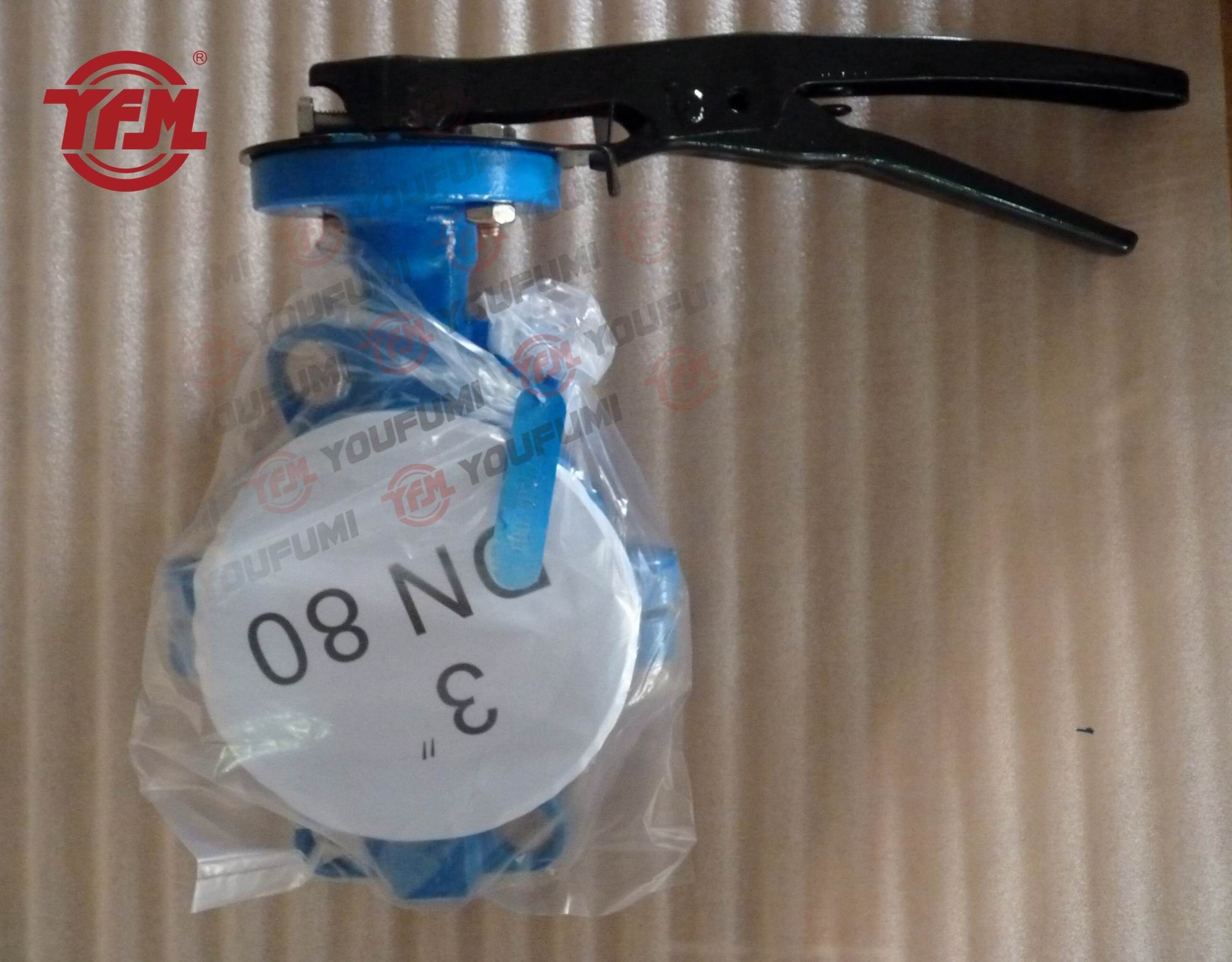

Teflon Lined Butterfly Valve with ISO Operator for Oil
| Price: |
US $ 80/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
D71F4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
Dn50~2000 |
| Actuator: |
Manual |
| Medium: |
Corrosion Medium |
| Operator: |
ISO En 5521 |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Wafer |
| Structure: |
Centre Sealing |
| Seal Form: |
Auto Sealed |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Industrial Usage |
Product Description
Teflon lined butterfly valve with ISO Operator for OilTechnical Specification
Design and Manufacture: ASME B16.34
End-to-end dimension: ASME/ANSI 16.10
Flange Standard: ASME/ANSI 16.5
Inspection and testing: API 598
Product Specification
Body Material: A216/WCB, A351/CF8,A351/CF8M,A351/CF3,A351/CF3M, LCB,A536
Stem Material: SS304 ,SS410,SS416, SS420
Seat Material: PTFE, RPTEF,PPL
Disc Steel: A216/WCB, A351/CF8,A351/CF8M,A351/CF3,A351/CF3M
Lining Material??PTFE,RPTFE,PPL
Nominal Diameter: NPS 2-20
Pressure Range: 150lb 300lb JIS DIN
Connection Type: wafer connection, flange connection
Operation Method: Manual, Worm Gear etc.
Products Description:
1.The lined butterfly valves bi-directional flow is possible at maxmium operating pressure. Since the valve port corresponds to the piping diameter, a high flow capacity is guaranteed.
2.It features ease of maintenance, repeatable on-off, long life durability.
3.The concentric design is commonly used in the power generation, brewing, water and food industries and suitable for both gaseous and liquid service. Typically applied in chemical/petrochemical process, food and beverage, and pulp and paper etc.
4.Lining material: PTFE, PFA, FEP, GXPO etc.
5.Connection type: wafer, flange, lug etc.
6.Operation methods: manual, worm gear, electric, pneumatic and hydraulic actuator.
7.Youfumi lined three-way ball valves are available as per the needs of applications in additional sizes and other than standard materials.

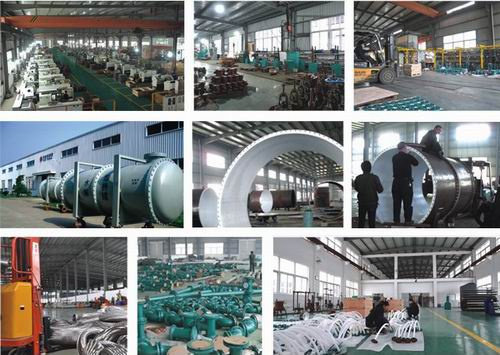

YFM is one of the Chinese leading manufacturers of PTFE valves and Pumps, supplying corrosion-resistant FEP Valve, PTFE Valve, PFA Valve, gate valve, globe valve, check valve, ball valve, butterfly valve, plug valve, diaphragm valve, centrifugal pump and three way pipe, four way pipe, elbow pipe, direct pipe and reducing pipe and fittings, which are widely used in applications requiring corrosion resistance. Founded in 1989, YFM earned a reputation for excellence as a major supplier of corrosion -resistant forged valves for the chemical, petrochemical, oil and gas, pulp and paper, pharmacy, dyeing and military industry as well as the various architectural engineering, cooling and water supply pipeline series. YFM Co. Pioneered many designs which became industry standards, including High efficient & intelligent PTFE lining Control Valves. YFMs product lines are manufactured in two specialized manufacturing plants, including one in Wenzhou, the Town of Valves & Pumps in China, another in Fuding, Fujian Province, China. We have 300 more employees, including a group of professional engineers with long standing experience in valve design and manufacturing.
YFM is one of the Chinese leading manufacturers of PTFE valves and Pumps, supplying corrosion-resistant FEP Valve, PTFE Valve, PFA Valve, gate valve, globe valve, check valve, ball valve, butterfly valve, plug valve, diaphragm valve, centrifugal pump and three way pipe, four way pipe, elbow pipe, direct pipe and reducing pipe and fittings, which are widely used in applications requiring corrosion resistance. Founded in 1989, YFM earned a reputation for excellence as a major supplier of corrosion -resistant forged valves for the chemical, petrochemical, oil and gas, pulp and paper, pharmacy, dyeing and military industry as well as the various architectural engineering, cooling and water supply pipeline series. YFM Co. Pioneered many designs which became industry standards, including High efficient & intelligent PTFE lining Control Valves. YFMs product lines are manufactured in two specialized manufacturing plants, including one in Wenzhou, the Town of Valves & Pumps in China, another in Fuding, Fujian Province, China. We have 300 more employees, including a group of professional engineers with long standing experience in valve design and manufacturing.
