Top Guide Single Seat Control Valve
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
Top guide single seat control valve |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Control |
| Power: |
Pneumatic |
| Material: |
Carbon Steel,Stainless Steel,Nace |
| Media: |
Gas,Liquid |
| Port Size: |
1/2"-8" (Dn15-Dn200) |
| Working Pressure: |
150-2500lb |
| Temperature: |
-200~650 Degree |
Product Description

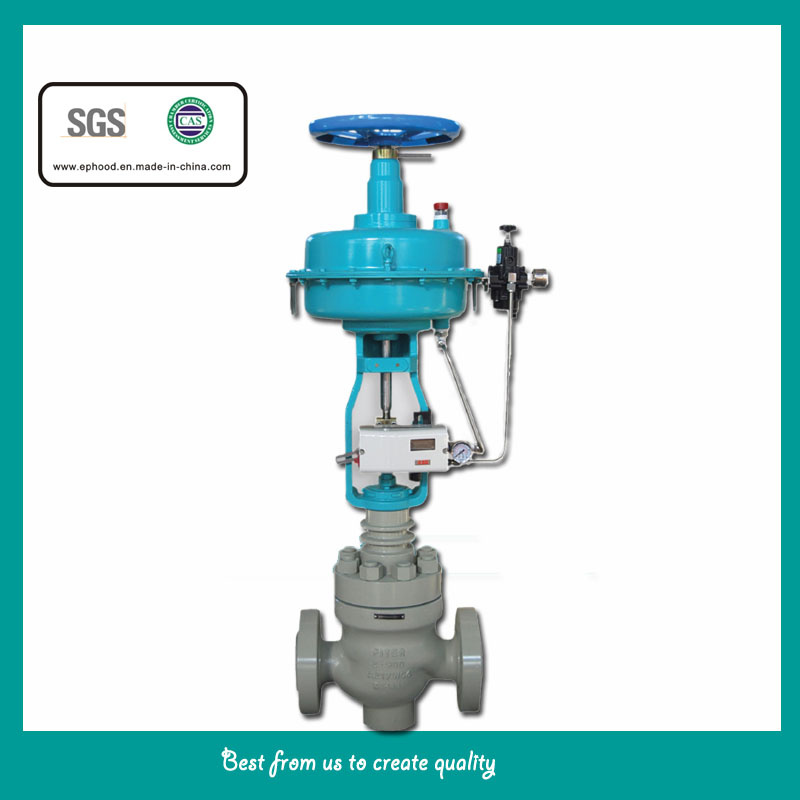

Top guide single seat control valve:
1. Type: Unbalanced plug
2. Body size: DN 15-DN200
3. Plug from: Contoured plug
4. Flow to: Flow to open ( flow to closed can be choosed)
5. Connection type: RF, RTJ, BW, SW
6. Leakage class: IEC60534-4
1) Top guide single-seat regulating valve, compact structure, less components, easy maintenance
2) Metal valve core is suitable for a variety of workplace, grade IV leakage standard, ZXPQ type soft grade VI leak sealing structure of valve core standards
3) Body according to the fluid mechanics principle designed to uniform the low flow resistance of fluid, rated flow coefficient increases by 30%
4) Wide adjustable range, inherent adjustable ratio of 50
5) Actuator adopt more spring structure, height decreased by 30% and 30% reduction in weight
6) ZXPV type bellows seal valve, the movement of the valve stem form completely sealed, plugging fluid leakage
7) ZXPJ type regulator with insulation jacket, used for fluid after cooling crystallization, cause jam the occasion
We are valve manufacturer specialized in the industrial valves utilized in the server application environment against high temperature, high pressure, high corrosive and low temperature or cryogenic application ranging from petrochemical, offshore, chemical, gas, power plant, shipyard to long distance pipeline and pharmacy or other industries. Valve types vary from ball valve, globe valve, check valve, gate valve, butterfly valve to plug valve, and also from tank bottom valve, sampling valve, double block & bleed valve, strainer to sight glass.
Valve material are available from Titanium, Nickel alloy, Zirconium, Nickel-Aluminum-Bronze, (Super) Duplex to alloy 20#, 904L, 310S, 321, 347 or other anti-corrosive alloys. With emphasis on quality consistency and innovative design, we gradually turn to be reliable business partner for plenty engineering companies and end users all over the world.
We are valve manufacturer specialized in the industrial valves utilized in the server application environment against high temperature, high pressure, high corrosive and low temperature or cryogenic application ranging from petrochemical, offshore, chemical, gas, power plant, shipyard to long distance pipeline and pharmacy or other industries. Valve types vary from ball valve, globe valve, check valve, gate valve, butterfly valve to plug valve, and also from tank bottom valve, sampling valve, double block & bleed valve, strainer to sight glass.
Valve material are available from Titanium, Nickel alloy, Zirconium, Nickel-Aluminum-Bronze, (Super) Duplex to alloy 20#, 904L, 310S, 321, 347 or other anti-corrosive alloys. With emphasis on quality consistency and innovative design, we gradually turn to be reliable business partner for plenty engineering companies and end users all over the world.
