| Prod Model: |
TSVC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Tsvc |
| Transmission Capacity: |
100-2000kg/H |
| Weight: |
30kg |
| Temperature: |
-10 O C ~ +45 O C |
| Materials: |
SUS304 |
| Surface Treatment: |
Sand Blasting |
| Protection Grade: |
P65 |
| Power Supply: |
Single Phase AC100 ~ 120V, Single Phase AC200 ~ 24 |
| Exhauster Method: |
Entrapment Vacuum Pump |
| Structure: |
Reciprocating Vacuum Pump |
Product Description

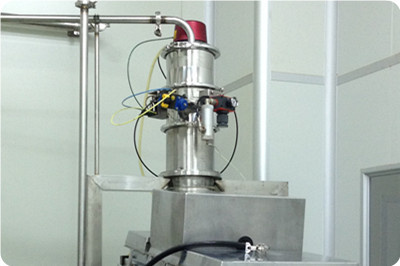

Vacuum conveyor is a kind of compressed air, driven by vacuum generated by the vacuum pump, and by means of vacuum suction to transmit granular and powdered materials transportation equipment, widely used in pharmaceutical, food, chemical, ceramics, feed, paint, dye, the agricultural production and scientific research.
Features:
A, simple in structure,
B, covers an area of small
C, airtight transportation pollution-free
D, using compressed air source, noise is small
E, high efficiency, high reliability
Principle:
1. In the compressed air, driven by multi-stage jet vacuum pump.Inside the vacuum pump has no moving parts, no lubrication and maintenance, additional generating heat;
2. The bottom of the discharge valve closed, while powder bunker and produce vacuum inside pipeline;
3. Under the effect of vacuum, the materials by powder bunker through a pipeline and inlet inhaled powder bunker;
4. The filter well stop powder and particles into the vacuum pump and send out into the atmosphere, to be transported materials and gas separation;
5. At the same time of conveying material, filling compressed air to blow air bags;
6. When absorbing material time to set parameters, vacuum pump automatically stops running, the bottom of the discharge valve is opened, conveying equipment inside and outside pressure balance, material falling to discharge location.Back at the same time, the compressed air release inside the balloon, produce pulse air flow and vibration type, automatic cleaning adhesion in the powder particles on the filter;
7. When discharging time to set parameters, vacuum pump to work again, to start
A new round of cycle.The whole transport process, the suction and discharge time by pneumatic or electric control of controller (not shown).
Model NO.
TSVC
Transmission capacity
100-2000kg/h
weight
30kg
Temperature
-10 º C ~ +45 º C
Materials
SUS304
Surface treatment
sand blasting
Protection grade
P65
Power supply
Single phase AC100 ~ 120V, Single phase AC200 ~ 240V
