| Prod Model: |
BYL-6649 |
| Markets: |
North America,Eastern Europe,Oceania,Western Europe |
| Connecting Size: |
M30*1.5mm |
| Temperature: |
6-28 Degree |
| Certification: |
En215, CE, ISO9001: 2008, ISO14001: 2004 |
Product Description

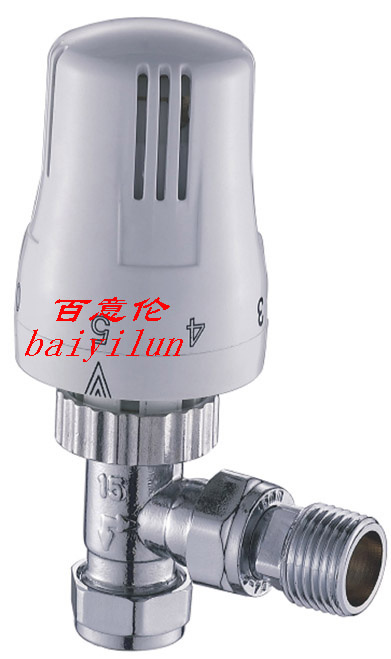

EN215 STANDARD DN15Thermostatic radiator valve Chrome TRV
Product Description:
Approved to EN215
Passed CE/ISO9001/ISO14001
Setting number * to 5
Limitable
Hysteresis: 0.5K
Liquid sensor
Frost protect
Guarantee:2 years
OEM branding available
DN15/20/25 avaiable
Brass valve body, plastic handle
Can be mounted vertically or horizontallyTemperature sensor
- Temperature hysteresis:1.0 k
- Max admissible static pressure:10 bar
- Max admissible differential pressure:1.0 bar
- Normal pressure:16 bar
- Max temperature resistance:110 degree
- Temperature extent: 6-28 degree

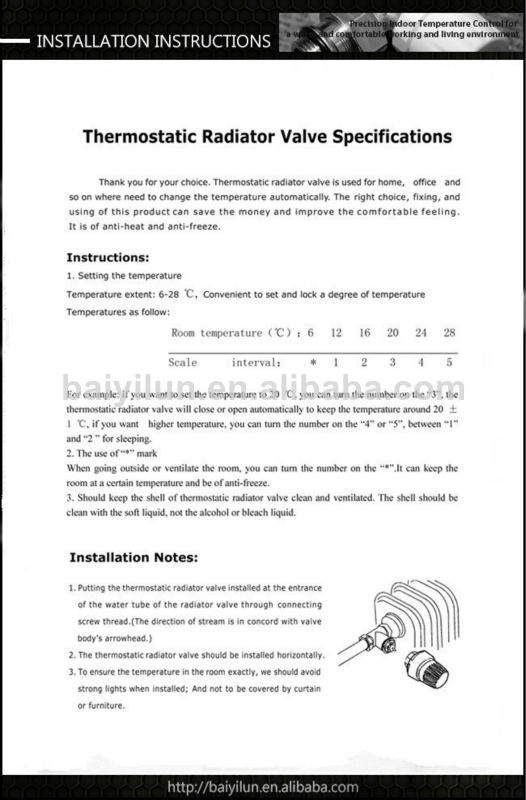

Temperature degrees as follow:
Room temperature(°c): 6 12 16 20 24 28
Scale interval: * 1 2 3 4 5
Thermostatic valve body
Made of brass, easy to be installed
Low resistance
Water temperature: Less than 120 degree
Normal resistance to pressure: 10 bar
Products details:
Avonflow Baiyilun TRV Co., Ltd. (old name "Wenzhou Baiyilun Hardware Co., Ltd") specializes in the development and manufacture of heating and temperature control products. Baiyilun constant temperature control valves, used in pressure temperature regulator of city heating and hot water system, are equipped with body as automatic constant temperature control valve. This valve doesn't need exterior energy while automatically controlled by indoor temperature, which can not only save energy but also protect environment and give you a suitable indoor temperature.
Manufacture and test of Baiyilun constant temperature control valve of radiator is according to GB/T13927-92; EN215-1 standard and through the test of Beijing Construction Project Quality Testing Centre. Our company also has advanced and complete testing and inspecting instrument.

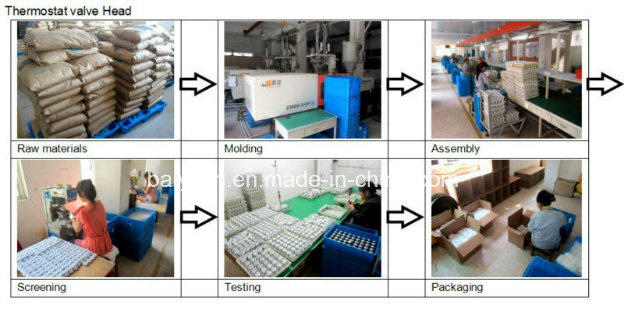

2 EN215 Standard Testing Bench, 8 automatic plastic injection machines, Over 10 years production experience on TRVs, 30 CNC machines, Over 40 exported Countries, Production Capicity around 3, 000, 000 pieces/year, Welcome you come to visit us and cooperate with us.
Avonflow Baiyilun TRV Co., Ltd. (old name "Wenzhou Baiyilun Hardware Co., Ltd") specializes in the development and manufacture of heating and temperature control products. Baiyilun constant temperature control valves, used in pressure temperature regulator of city heating and hot water system, are equipped with body as automatic constant temperature control valve. This valve doesn't need exterior energy while automatically controlled by indoor temperature, which can not only save energy but also protect environment and give you a suitable indoor temperature.
Manufacture and test of Baiyilun constant temperature control valve of radiator is according to GB/T13927-92; EN215-1 standard and through the test of Beijing Construction Project Quality Testing Centre. Our company also has advanced and complete testing and inspecting instrument.
2 EN215 Standard Testing Bench, 8 automatic plastic injection machines, Over 10 years production experience on TRVs, 30 CNC machines, Over 40 exported Countries, Production Capicity around 3, 000, 000 pieces/year, Welcome you come to visit us and cooperate with us.
