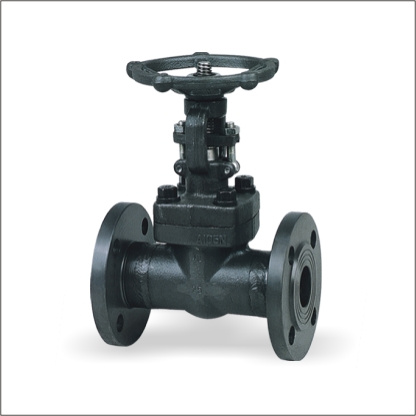

Valve (gate)
Price: |
Negotiable |
Trade Terms: |
30days |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,D/P |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Suitable Medium: Water, Oil, Gas.: |
Pressure: 150lb, 300lb, 600lb |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Seal Surface: |
Wedge Gate Valve |
Connection Form: |
Flange |
Material: |
ASTM A216 Wcb, A217 Wc6, A351 Cf8, A351 Cf8m, |
Product Description
OS&Y, Rising stem, Flexible Wedge
Bolted Bonnet, Threaded or welded seat ring
Standards:
Design and manufacture as API600, ANSI B16.34
Face to face dimension as ANSI B16.10
End flange dimension as per ANSI B16.5
Pressure-temperature rating as ANSI B16.34
NO. |
Part name |
WCB |
CF8 |
CF8M |
LCB |
1 |
Body |
A216 Gr WCB |
A351 Gr CF8 |
A351 Gr CF8M |
A352 Gr LCB |
2 |
Bonnet |
A216 Gr WCB |
A351 Gr CF8 |
A351 Gr CF8M |
A352 Gr LCB |
3 |
Gasket |
Spiral wound/Soft lron |
Spiral wound/SS304 |
Spiral wound/SS316 |
Spiral wound/Soft lron |
4 |
Gland Packing |
Graphite |
Graphite |
Graphite |
Graphite |
5 |
Bolt and nut |
A193 Gr B7/A194 Gr 2H |
A193 B8/A194 8 |
A193 B8M/A194 8 |
A320 Gr L7/A194 Gr 4 |
NO. |
Part name |
WC6 |
WC9 |
C5 |
C12 |
1 |
Body |
A271 Gr WC6 |
A271 Gr WC9 |
A217 Gr C5 |
A217 Gr C12 |
2 |
Bonnet |
A271 Gr WC6 |
A271 Gr WC9 |
A217 Gr C5 |
A217 Gr C12 |
3 |
Gasket |
Spiral wound/SS304 |
Spiral wound/SS304 |
Spiral wound/Soft lron |
Spiral wound/Soft lron |
4 |
Gland Packing |
Graphite |
Graphite |
Graphite |
Graphite |
5 |
Bolt and nut |
A193 Gr B16/A194 Gr 4/7 |
A193 Gr B16/A194 Gr 4/7 |
A193 Gr B16/A194 Gr 4/7 |
A193 Gr B16/A194 Gr 4/7 |
NO. |
Part name |
Material |
6 |
Wedge |
Material see body |
7 |
Seat ring |
CS+SS/SS/SS+STL |
8 |
Stem |
Stain less steel |
9 |
Back seat |
Stain less steel |
10 |
Gland |
Stain less steel |
11 |
Gland flange |
Carbon steel/equivalent to body material |
12 |
Stem nut |
A 439-D2/cu-alloy |
13 |
Pin |
Carbon steel/stainless steel |
14 |
Eye bolt and nut |
A 193 B7/A194 2H~A193 B8/A194 8 |
15 |
Yoke nut |
Carbon steel/SS |
16 |
Hand wheel |
Malleable lron/cast steel/ ductile lron/fabricated ste |
17 |
Hand wheel nut |
Carbon steel |
18 |
Grub screw |
Carbon steel |
19 |
Grease nipple |
Brass |
Zhejiang Fangwen Special Steel Co., Ltd. Is a scientific enterprise which integrates valve casting, design, manufacture, sale and service together. It is located in Binhai Economic Development Zone of Wenzhou, 8 kms away from Wenzhou airport, covers 20, 000 square meters. There are 350 employees in the company now. The annual total output value of our company is always more than 34 million USD in the recent years.
The main products are ball valve, gate valve, globe valve, check valve, strainer under the high and medium pressure etc. Materials include Stainless Steel, WCB, Titanium, Nickel, Hastelloy, Monel, Aluminium Bronze, Duplex Stainless Steel and so on. They can be made according to American standard, British standard, German standard, Japanese standard and other related standards. And they are widely used in petrochemical, food, pharmaceutical and other industries. We have exported them to the U. S., Europe, Russia, Middle East and Southeast Asia markets etc. They have been received good reputation by a large quantity of customers because of the reliability and stability.
Fangwen has scientific management. It has passed ISO9001: 2008 international quality system certification, Korea Certification, PED CE safety certification EU Pressure Equipment Directive, API-6D American Petroleum Institute certification, TS pressure pipe valve manufacturing license certification.
The company has the assorted workshops of casting, machining, assembly, testing. There are complete production processes which are smelting, wax model, casting, machine processing. With large sets of casting equipment, hydraulic equipment, machinery processing equipment, numerical control machine tools, vertical, horizontal machining centers, precision measuring instruments and testing devices. We also have high-tech test equipments, such as Shimadzu spectrophotometer and the United States imported portable spectrum analyzer alloy, high-speed ignition infrared carbon-sulfur analyzer, ultrasonic Lee hardness tester, ultrasonic thickness gauge, hydraulic universal testing machine, and a series of dimensional accuracy testing and analysis of the internal microstructure and other non-destructive flaw detector, we has achieved the aim that controlling the quality of the product manufacturing process perfectly.
Fangwen has always insisted on the development strategy which is "people-oriented, technological innovation, integrity management and brand guarantee", we serve the society with high-quality products and perfect services and Committed to the development of national industries.
We sincerely hope to cooperate with the customers all over the world and make more brighter future.
Zhejiang Fangwen Special Steel Co., Ltd. Is a scientific enterprise which integrates valve casting, design, manufacture, sale and service together. It is located in Binhai Economic Development Zone of Wenzhou, 8 kms away from Wenzhou airport, covers 20, 000 square meters. There are 350 employees in the company now. The annual total output value of our company is always more than 34 million USD in the recent years.
The main products are ball valve, gate valve, globe valve, check valve, strainer under the high and medium pressure etc. Materials include Stainless Steel, WCB, Titanium, Nickel, Hastelloy, Monel, Aluminium Bronze, Duplex Stainless Steel and so on. They can be made according to American standard, British standard, German standard, Japanese standard and other related standards. And they are widely used in petrochemical, food, pharmaceutical and other industries. We have exported them to the U. S., Europe, Russia, Middle East and Southeast Asia markets etc. They have been received good reputation by a large quantity of customers because of the reliability and stability.
Fangwen has scientific management. It has passed ISO9001: 2008 international quality system certification, Korea Certification, PED CE safety certification EU Pressure Equipment Directive, API-6D American Petroleum Institute certification, TS pressure pipe valve manufacturing license certification.
The company has the assorted workshops of casting, machining, assembly, testing. There are complete production processes which are smelting, wax model, casting, machine processing. With large sets of casting equipment, hydraulic equipment, machinery processing equipment, numerical control machine tools, vertical, horizontal machining centers, precision measuring instruments and testing devices. We also have high-tech test equipments, such as Shimadzu spectrophotometer and the United States imported portable spectrum analyzer alloy, high-speed ignition infrared carbon-sulfur analyzer, ultrasonic Lee hardness tester, ultrasonic thickness gauge, hydraulic universal testing machine, and a series of dimensional accuracy testing and analysis of the internal microstructure and other non-destructive flaw detector, we has achieved the aim that controlling the quality of the product manufacturing process perfectly.
Fangwen has always insisted on the development strategy which is "people-oriented, technological innovation, integrity management and brand guarantee", we serve the society with high-quality products and perfect services and Committed to the development of national industries.
We sincerely hope to cooperate with the customers all over the world and make more brighter future.
