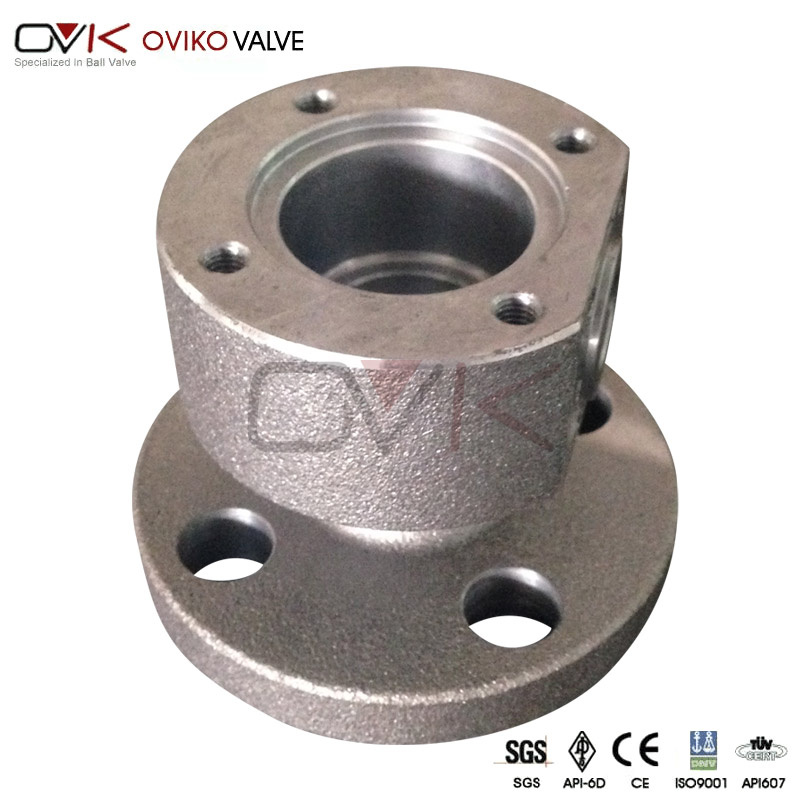

Valve Parts Valve Body High Pressure
| Price: |
US $ 20-20000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
OVK-150424 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2'"-48" |
| Pressure: |
150lb-2500lb |
| End Connection: |
RF/Rtj/Butt-Weld,Threaded, Socked Ends. |
| Designed And Tested: |
API 598/6D |
| Fire Safe: |
API 607 and Nace Mr-01-75 |
| Certificates: |
API6d,API607,API6fa,CE,ISO9001 |
| Seat Material: |
PTFE, Peek, Rptfe, Nylon, Ppl |
| Connection Form: |
Flange |
| Channel: |
Full Bore or Reduced Bore |
| Structure: |
Forged Trunnion Type |
| Type: |
Forged Trunnion Type |
| Material: |
A105, F304, F316, Lf2 |
| Application: |
Water, Oil & Gas |
| Nominal Pressure: |
150lb-2500lb |
Product Description
| Size | 1/2'"-48" |
| Pressure | 150lb-2500lb |
| End Connection | RF/Rtj/Butt-Weld,Threaded, Socked Ends. |
| Designed and Tested | API 598/6D |
| Fire Safe | API 607 and Nace Mr-01-75 |
| Certificates | API6d,API607,API6fa,CE,ISO9001 |
FORGED TRUNNION BALL VALVE
Pressure:Class150-Class2500
Size:NPS 2-48
Body material: A105, 304, 316, 304L, 316L
Seat material: PTFE/NYLON/PEEK/PPL
Applicable temperature: ≤120ºC(PTFE),≤80ºC(NYLON),≤250ºC(PEEK),≤250ºC(PPL)
Design and manufacturing: API 608, API 6D
Pressure test: API 598, API 6D
Structural features: Low operation torque, emergency sealing device, fireproof structure design, reliable sealing structure , anti static structure, special structure of automatic pressure relief towards upper steam, blow-out proof stem, corrosion resistance and sulfide stress resistance, extension stem.
OVIKO GROUP CO.,LTD. was founded in 2004.It located in Heyi Industrial Zone, Oubei Town, Wenzhou, China,where is the China Pump & Valve hometown.We have more than one hundred empolyees ,including 4 engineers ,5 QC and QA.And we have a professinal ball machining workshop,where can make all kinds of precision balls,including top entry,metal seat and V type balls.On this base,our products range of floating,trunnion,top entry,metal seat,full welded,NPT ends,V type,3-way ball valve,etc.Surely we can design them by customer's special requirements.
We have more than one hundred empolyees ,including 6 engineers ,18 QC and QA.And we have a professinal ball machining workshop,where can make all kinds of precision balls,including top entry,metal seat and V type balls.On this base,our products range of floating,trunnion,top entry,metal seat,full welded,NPT ends,V type,3-way ball valve,etc.Surely we can design them by customer's special requirements.
OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.
Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.
We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.
Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.
We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
