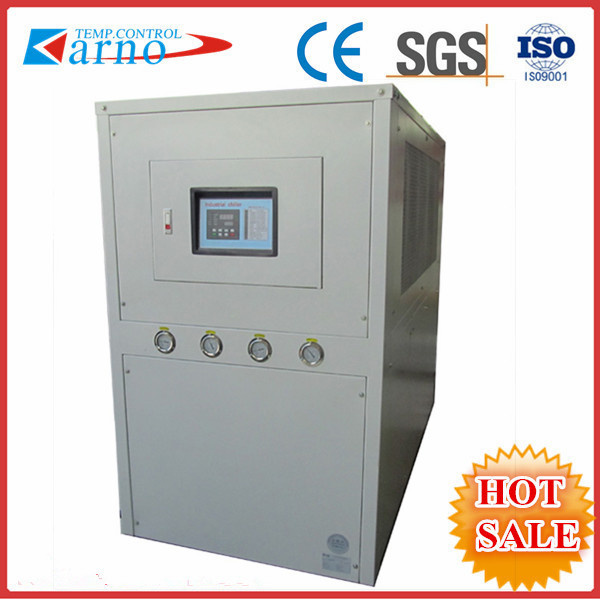

Water Cooled Scroll Compressor Water Chiller (KN-12WC)
| Price: |
US $ 3150/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
KN-12WC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
36.9kw/10.63usrt |
| Compressor Power: |
9.05kw |
| Power Supply: |
380V/3pH/50Hz (Customed) |
| Flwo Regulator: |
Therm-Expansion Valve (Danfoss, Danmark) |
| Condenser: |
Shell and Tube (Kobe, Japan) |
| Evaporator: |
Shell and Tube/Tank with Coils |
| Chilled Water Flow: |
6.8m³/H |
| Built-in Pump: |
1HP (Minamoto Since 1986) |
| Internal Electric Parts: |
Schneider/Siemens |
| Refrigerant: |
R22/R134A/R407 |
| Certification: |
SGS |
| Condition: |
New |
| Type: |
Water-Cooled |
Product Description
Water cooled scroll compressor water chiller (KN-12WC)
Features:
Reliable guarantee
Adopting the famous brand compressor, advanced technology to achieve optimum efficiency.
Easy installation
Light structure, easy to move, simple electrical and water connections.
Effective energy-saving
Scroll compressor more efficient than traditional piston designs enhanced fan and condenser.
High precision
Precision digital computer thermostat, control precisely the water temperature, sophisticated controlboard.
Safe operation
A variety of advanced electronic techbology protection. Reducing to a minimum hysteresis time by the self-diagnosis and fault alarm.
Easy maintenance
European design, easy disassembly. Quickly and efficient maintenance.
Remarks:
1. The chilled water temperature of such chillers is 5 to 25 Celsius, and minus 30 Celsius can be made.
2. All the chillers contain refrigerant r22/r407/r134A when shipped.
3. All the parts, whole machine and the tube dimensions are up to standards.
4. Nonstandard parts, machines and tube connections can be customed.
5. Installation, commissioning and maintenance shall be performed by qualified service technicians.
Technical Parameters Of Water Cooled Scroll Compressor Water Chiller
|
Items |
Model |
Cooling capacity |
|
KN-12WC |
KN-15WC |
KN-20WC |
KN-25WC |
KN-30WC |
KN-40WC |
|
Btu / h |
12890 |
148168 |
221227 |
267316 |
296335 |
442454 |
|
KW |
36.9 |
43.4 |
64.8 |
78.3 |
86.8 |
129.6 |
|
Kcal / h |
31734 |
37317 |
55718 |
67326 |
74635 |
111436 |
|
Ton |
10.63 |
12.3 |
18.4 |
22.3 |
24.7 |
36.8 |
|
Power supply |
3Ph-380V-50Hz/60Hz (customed) |
|
Compressor Power |
KW |
9.05 |
11.24 |
15.3 |
18.67 |
22.68 |
30.52 |
|
Refrigerant |
R134a / R407 |
|
Condenser |
Shell and tube (Kobe, Japan) |
|
Cooling water tube size/DN |
50 |
50 |
65 |
65 |
65 |
80 |
|
Cooling water flow/m ³ / h |
8.5 |
9.34 |
14.2 |
16.75 |
18.69 |
27.92 |
|
Evaporator |
Type |
Water tank / shell and tube (Kobe, Japan) |
|
Water tank Vol.: L |
280 |
360 |
510 |
510 |
510 |
600 |
|
Chilled water flow |
M ³ /h |
6.8 |
7.48 |
11.16 |
13.49 |
14.95 |
22.32 |
|
Chilled water tube size |
DN |
50 |
50 |
65 |
65 |
65 |
80 |
|
Refrigerant |
R407/R134a (ecological) |
|
Water pump |
Hp |
2 |
2 |
2 |
3 |
3 |
5 |
|
Weight |
Kg |
600 |
650 |
750 |
1050 |
1360 |
1390 |
