| Prod Model: |
SV1/4G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
Product Description

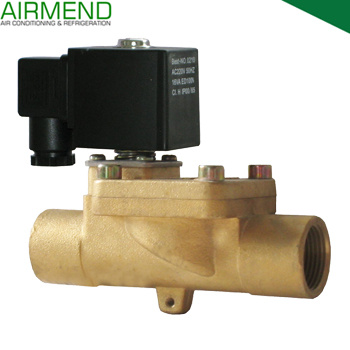

water solenoid valve (SV-G series) magnetic valve electromagnetic valve
Ambient temperature: -20 ~ 50 Celsius
Medium temperature: -25 ~ 120 Celsius
Max. working pressure: 3MPa
Max. testing pressure: 3.5MPa Available medium: R134a, R22, R407C, R404A/507, air, water and oil
Rated power: A.C. : 24V,36V,110V,220V,380V D.C. : 12V,24V,110V,220V
Usage
1. The valve must install in horizontal pipe line under vertical position. The flow direction must meet the arrow direction in valve body.
2. The coil input voltage must meet rated input voltage showed on the label. Departure coil from valve when energized in coil is not permitted in order to avoid damage the coil.
3. According to valve with manual function, it must turn manual bar to open the valve before doing system air tightness in order to avoid to damage diaphragm.
4. When brazing the valve with connect tube in system, follow points are very important:
a. Before brazing, coil must be departure and use wet fabric cover the valve body to avoid to damage valve part because of high temperature when brazing.
b. It must avoid the brazing flame face to valve body.
c. It is better to adopt low temperature type silver brazing bar.
SV-G series solenoid valves can be used as actor of automatic system in water supply system, fire control system, and water spray system in dirty proofing or agricultural. They also can be used for pneumatic hydraulic and food machine. Solenoid valves use full-closed magnetic coil and DIN international standard electric plug, so it is characterized by its good insulation, waterproof, moisture proof, anti-vibration and corrosion resistance.
