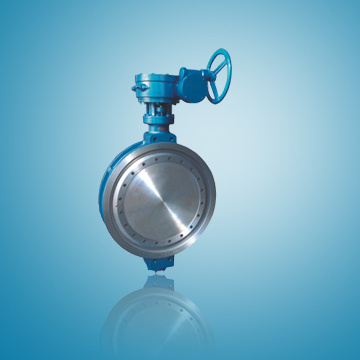

Wcb Body Wafer Type High Performance Butterfly Valves
| Price: |
US $ 1000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
D373H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Wafer |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Structure: |
Three-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Water Industrial Usage |
| Material Of Seal Surface: |
Metal Hard Sealed |
Product Description
High performance butterfly valve(wafer type)

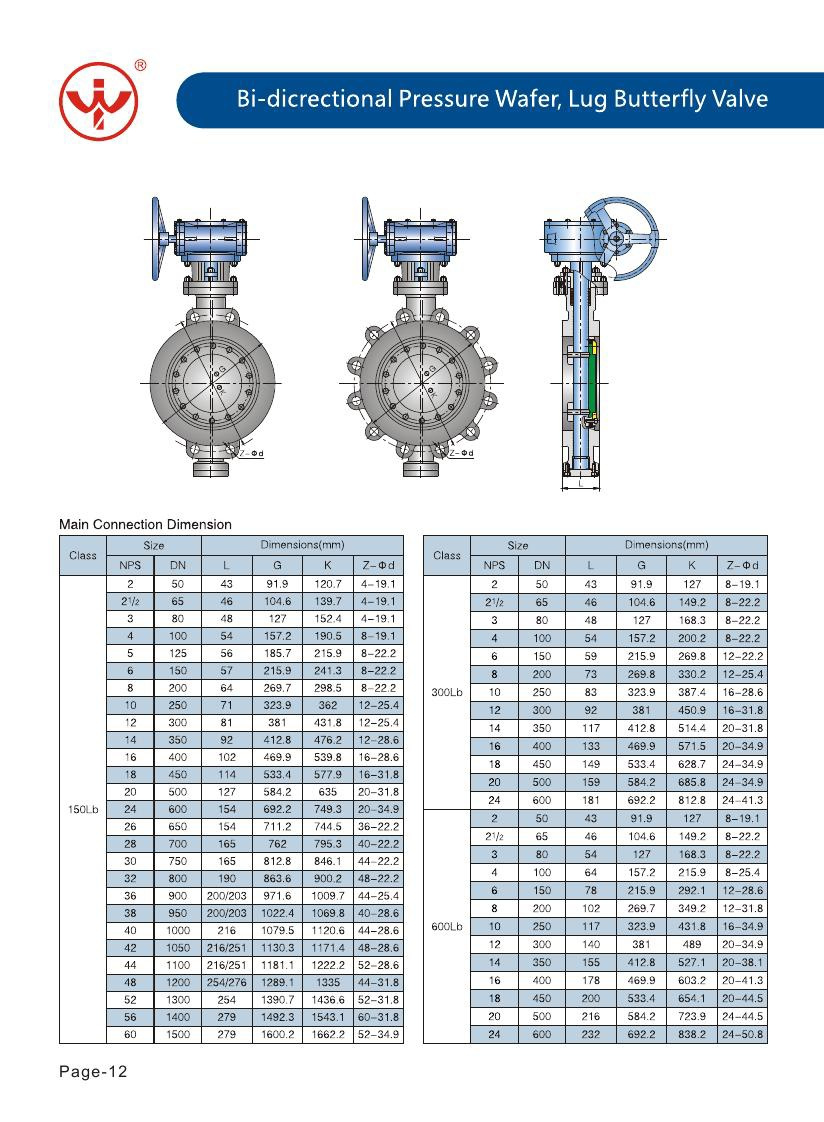

High performance butterfly valve(Lug type/API butterfly valve)
Trait and purpose
Hard Seal Butterfly valve tripe offset series are our company's leading products, which are used in such fields as metallurgy, light industry, electric power, petrochemistry, coal gas channel etc.
The seal principle of hard Seal Butterfly Valve triple offset
The Triple Offset Butterfly Vlave provides a bi-directional bubble tight shut-off. This geometry ensures that the disc seal contacts the body seat only at the final shut-off position without rubbing or galling, providing a torque generated resilient seal with sufficient"wedging"to ensure auniform seal contact.
Specifications:
1) Pressure rating: 150 - 300lbs
2) Size: 6 - 72"
3) Temperature: -29 - 425 (WCB), -196 - 600 (SS)
4) Suitable medium: Water, oil, vapor etc.
5) Body: WCB/CF3M/CF3/CF8/CF8M
6) Disc: WCB/SS
7) Stem material: Stainless steel, Cr. Mo. Steel
8) Stuffing: Graphite
9) Operation actuator: Hand wheel, Worm gear, pneumatic, etc.
Established in 1992, Zhejiang Wanli Valve Manufacture Co., Ltd. is a professional manufacturer specialized in various valve, strainer and flanges.
As an ISO9000, CE, API6D and API609 certified company, We supply high quality products: Gate valve, check valve, globe valve, butterfly valve, Y type strainer, basket strainer and flanges; Size from 1/2" to 72", Rating from 150#--2500#; And main materials are carbon steel and stainless steel: A105, F1, F5, F11, WCB, WCC, WC6, WC9, LCB, LCC, CF8, CF3, CF8M, CF3M, SS304, SS316, SS304L, SS316L etc.
The products are in accordance with the ANSI, DIN, JIS, UNI, BS and Chinese GB standards. We provide OEM service according to clients' Requirements. Our products are widely used in petroleum, nature gas, chemical industry, electric power and city pipe networks.
At present, our products are exported to many countries and regions, such as Southeast Asia, Middle-east region and Europe and America, receiving good reputation from our clients. Always adhering to the principle of "quality first, clients superior", we offer the best services to our customers.
If you are interested in any of our products, please feel free to contact us. We are looking forward to cooperation with friends and clients from all over the world for mutual development.
Established in 1992, Zhejiang Wanli Valve Manufacture Co., Ltd. is a professional manufacturer specialized in various valve, strainer and flanges.
As an ISO9000, CE, API6D and API609 certified company, We supply high quality products: Gate valve, check valve, globe valve, butterfly valve, Y type strainer, basket strainer and flanges; Size from 1/2" to 72", Rating from 150#--2500#; And main materials are carbon steel and stainless steel: A105, F1, F5, F11, WCB, WCC, WC6, WC9, LCB, LCC, CF8, CF3, CF8M, CF3M, SS304, SS316, SS304L, SS316L etc.
The products are in accordance with the ANSI, DIN, JIS, UNI, BS and Chinese GB standards. We provide OEM service according to clients' Requirements. Our products are widely used in petroleum, nature gas, chemical industry, electric power and city pipe networks.
At present, our products are exported to many countries and regions, such as Southeast Asia, Middle-east region and Europe and America, receiving good reputation from our clients. Always adhering to the principle of "quality first, clients superior", we offer the best services to our customers.
If you are interested in any of our products, please feel free to contact us. We are looking forward to cooperation with friends and clients from all over the world for mutual development.
