| Prod Model: |
ZC-F31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Universal Valve Lockout |
| Part Code: |
Zc-F31 |
| Description: |
for Quarter-Turn Ball Valves |
| Weight: |
525g |
| Package: |
1 PC/Box |
| Handle Widths: |
1''(25mm) to 1.6''(40mm) |
| OEM / ODM: |
Yes, OEM and ODM Are Available |
| Sample: |
Yes |
| Usage: |
Use The Single Arm to Lock out Quarter-Turn Valves |
Product Description

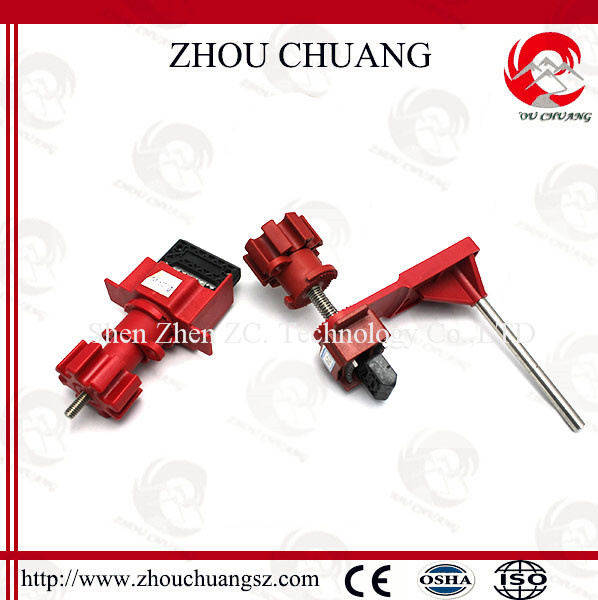

UNIVERSAL VALVE LOCKOUT
Made from industrial-grade steel and nylon fro rugged durability, chemical and corrosion resistance.
Fit new open-ended clamp over the closed ring, used to lock out large levers, T-handles and other hard-to-secure mechanical devices. It can add various accessories to make the device suitable for a range of valves.
Use on handle widths from 1"(25mm) to 1.6" (40mm).
Part Code |
Description |
Weight |
Package |
ZC-F31 |
For quarter-turn ball valves |
525g |
1 pc/box |
ZC-F32 |
For 3, 4 or 5-way valves |
770g |
1 pc/box |
ZC-F33 |
Using cable attachment for gate valve |
370g |
1 pc/box |
ZC-F34 |
For butterfly valves |
283g |
1 pc/box |
ZC-F35 |
Universial valve lockout for most valves |
615g |
1 pc/box |
ZC-F31: Use the single arm to lock out quarter-turn ball valves.
ZC-F32: Use the two arms to lock out 3, 4 or 5-way valves.
ZC-F33: Use the cable attachment to lock out valves.
ZC-F34: Fix the clamp on the hand sharnk to avoid the trigger from closing.
ZC-F35: Universial use for all types of valves.
Related Valve Lockout
Adjustable Ball Valve Lockout
a.Made from tough&durable plastics,resist of high temperature of 180C.
b.Can lock out double roll valves.
c.There sizes available,ZC-F05 and ZC-F06 are applied for 13-70mm.ZC-F07 is applied for 73-215mm pipes.
2. Applied Size;
a) ZC-F05 Suitable for 13mm to 70mm pipes.
b) ZC-F06 Suitable for 13mm to 70mm pipes.
c) ZC-F07 Suitable for 73mm to 215mm pipes
3. Color: Normally red, all colors are available.
4. Feathres:
a) Resistant to extreme weather temperature conditions.
b) OEM Manufacturing Service Supported.
5. Usage: The two halves of the device encompass the ball valve lever to secure it from inadvertent activation of the valve.
Be made of super resin and stainless steel.Good impact and chemical resistance.
Advanced upper teeth trapezoid and lower teeth open design is suitable to hitch the handle, locking out the valve and pipe together with cable.
Fits for the valve handle width up to 26mm, thickness up to 15mm,the cable length can be made according to the customer request.
Matched with the arm, can replace the gate valve lock, ball valve lock and butterfly valve lock.
Universal Valve Lockout
The Universal Lockout device is a modular system which enables you to lock out valves of different types and sizes. No other device offers
such flexibility and security.
Modular system makes your investment economical and flexible
Can be used to lockout large levers, T-handles and other hard-to-secure mechanical devices
New open-ended clamp fits over closed rings, wide handles
Locks out valves in open and closed positions
Made from industrial-grade steel and nylon for rugged durability, chemical and corrosion resistance
Vavle Lockout Application
1. Applicable in the industries of petroleum, chemical, pipeline system using ball valves for safety protection.
2. Suitable for water conservancy, electric power, municipal government such as pipeline system using ball valves for safety protection.
3. Applicable to the pharmaceutical, paper making, steel ball valves, drinks and other large pipeline system used for safety protection.
4. Applicable to the construction industry, business, community, family residential plumbing repair ball valves such as pipeline system used for safety protection.
5. Suitable for all other equipped with ball valve piping system for safety protection.
Double Arm Universal Valve Lockout
Material: Super Nylon &stainless steel
Service temperature -20°C-160°C
Pcs/Master ctn: 20pcs/ctn
Master Ctn size: 61*57*46cm
Master GW/NW: 27.28kg;21.22kg
Payment of our safety Lockout:T/T,L/C,Western Union
Delivery:
Delivery time for samples is about a week,and deliver time for bulk goods is
about 15days or 20days.at the same, if there are same special situation,we
can shorted the delivery time.
All the above shows our products are widly popular inAsia, Europe,
North America,South America,Africa,Oceania,Antarctica.And our
company has our own R & D team that can design accroding to
customers'requirments.
