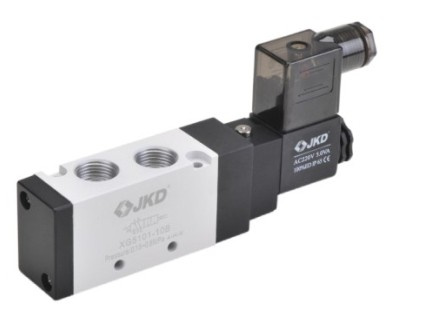

Xg5 Series Solenoid Valve
| Price: |
US $ 3/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
XG5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
AC or DC |
Product Description
VALVE
XG Series Spacer Sleeve Solenoid Valve
FEATURE
1.Pilot-oriented mode: optional for internal or external
2.Structure in sliding column mode: good tightness and sensitive reaction
3.Three position solenoid valves have three kinds of central function for your choice
4.Double control solenoid valves have memory function
5.Internal hole adopts special processing technology which has little attrition friction,
low start pressure and long service life
6.No need to add oil for lubrication
7.It is available to form integrated valve group with the base to save installation space
8.Affiliated manual devices are equipped to facilitate installation and debugging
9.Several standard voltage grades are optional
|
SPECIFICATION |
|
Model |
XG5101-06B/08B XG5101A-06B/08B |
XG5200-06B/08B XG5200A-06B/08B |
XG5303C-06B/08B XG5303AC-06B/08B |
XG5303E-06B/08B XG5303AE-06B/08B |
XG5303P-06B/08B XG5303AP-06B/08B |
|
Valve type |
Two way five position |
Three way five position |
|
Effective cross section area |
25MM² ( Cv=1.40) |
12MM²(Cv=0.67) |
|
Working medium |
Air(to be filtered by 40μ filter element) |
|
Motion pattern |
Inner guide type |
|
Working pressure |
0.15~0.8mpa |
|
Max. test pressure |
1.2MPA |
|
Working pressure |
"5~50°C |
|
Operating voltage Tolerance |
±10% |
|
Power consumption |
AC:4.5VA DC:3W |
|
Protection |
IP65 |
|
Wiring / Connector |
G or L |
|
Max frequency |
5 cycle/sec |
|
Response time |
0.05 sec |
Virtue with behaviors, the world of pneumatic products"!
Ningbo JKD Pneumatic Engineering Co; Ltd helps customers to get the jobs done by providing the best integrative services of product selection, local availability, speedy delivery and order simplicity in the industry.
Our products are widely used in vehicle assembly lines, industrial automation products, home appliances, and so on. Our main products include air cylinders, reversing valves, fluid control valves, air combination products and pneumatic accessories. We also accept customized orders, providing customers with the right pneumatic products to keep their facilities up and running.
Our great investment in R&D guarantees that we can catch the leading design trends in this area. Our quality control is conducted strictly under ISO9001: 2008 standards. JKD is proved to be an international manufacturer by complying with strict quality control as well as meeting various demanding requests.
Our products are popular in North America, South America, Europe, Australia and other countries and regions.
JKD strives to manage our own operations, also helping customers to manage theirs. We provide customers with cost-effective and sustainable practices and solutions.
Virtue with behaviors, the world of pneumatic products"!
Ningbo JKD Pneumatic Engineering Co; Ltd helps customers to get the jobs done by providing the best integrative services of product selection, local availability, speedy delivery and order simplicity in the industry.
Our products are widely used in vehicle assembly lines, industrial automation products, home appliances, and so on. Our main products include air cylinders, reversing valves, fluid control valves, air combination products and pneumatic accessories. We also accept customized orders, providing customers with the right pneumatic products to keep their facilities up and running.
Our great investment in R&D guarantees that we can catch the leading design trends in this area. Our quality control is conducted strictly under ISO9001: 2008 standards. JKD is proved to be an international manufacturer by complying with strict quality control as well as meeting various demanding requests.
Our products are popular in North America, South America, Europe, Australia and other countries and regions.
JKD strives to manage our own operations, also helping customers to manage theirs. We provide customers with cost-effective and sustainable practices and solutions.
