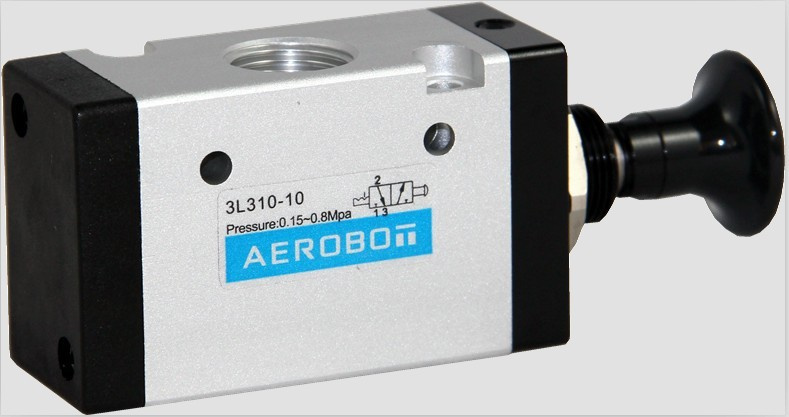

3L310-10 Hand Push-Pull Valve (3L310-10)
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
3L310-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Acting Type: |
Manual Control Direct Acting Model |
| Port Size: |
1/4" |
| Thread Type: |
Npt, PT, G Thread Are Available |
| Operating Pressure: |
0-0.8mpa |
| Proof Pressure: |
1.5mpa |
| Operating Force: |
18n |
| Working Temperature: |
-20-70 Degree |
| Material: |
Body:Aluminum Alloy, Seals:HNBR |
| Weight: |
190g |
| Lead Time: |
Within 7 to 15 Days After Payment |
Product Description
Aerobot would like to provide you with quality products at very competitive prices. Product details shown as followings:
Specifications
Air tac type Hand valve, Pull-push valve 3 port: 3L series
Air tac type Hand valve, pull-push valve
3 port pull-push valve: 3L series
3L100, 200, 300 Series 3 port pull-push valve.
3 port 2 position: Port size: 1/8", 1/4", 3/8". NPT, PT, G thread are all available for selection.
Widely used in automation industry, easy to control and maintain.
|
Model |
3L110-06 |
3L210-06 |
3L210-08 |
3L310-08 |
3L310-10 |
|
Fluid |
Compressed Air |
|
Type of actuation |
3 port 2 position (Normally closed) |
|
Port size |
In=Out=1/8 |
In=Out=1/4 |
In=Out=3/8 |
|
Orifice size |
12mm2(Cv=0.67) |
14mm2(Cv=0.78) |
16mm2(Cv=0.89) |
25mm2(Cv=1.40) |
30mm2(Cv=1.68) |
|
Operating pressure range |
0~0.8Mpa |
|
Proof pressure |
1.5 Mpa |
|
Ambient and fluid temperature |
-20~70°C |
Ningbo Aerobot Automatic Industrial Co., Ltd. is a rapidly-growing company for pneumatic components. Aerobot is located in Ningbo, China, near Ningbo International Airport, with standard workshops of more than 10, 000 square meters, and with total investment of RMB 60 million.
We are specializing in designing, developing and producing pneumatic valves, pneumatic cylinders and pneumatic auxiliary components, which are used widely in automatic industries of mechanical manufacture, automobile, metallurgy, electronics, environmental protection, light industry, textile, medical equipment, printing and packaging etc. Aerobot also provides customer-specific solutions according to customers' requirements.
With the goal of promoting automatic level of Chinese manufacturing, we've got the latest imported processing equipments, brought in the advanced R&D ideas sourced from Europe, and adopted the strict management of enterprises of Japan and Taiwan.
For industrial automation, we are dedicated to providing customers with our platinum-like quality products and services.
Ningbo Aerobot Automatic Industrial Co., Ltd. is a rapidly-growing company for pneumatic components. Aerobot is located in Ningbo, China, near Ningbo International Airport, with standard workshops of more than 10, 000 square meters, and with total investment of RMB 60 million.
We are specializing in designing, developing and producing pneumatic valves, pneumatic cylinders and pneumatic auxiliary components, which are used widely in automatic industries of mechanical manufacture, automobile, metallurgy, electronics, environmental protection, light industry, textile, medical equipment, printing and packaging etc. Aerobot also provides customer-specific solutions according to customers' requirements.
With the goal of promoting automatic level of Chinese manufacturing, we've got the latest imported processing equipments, brought in the advanced R&D ideas sourced from Europe, and adopted the strict management of enterprises of Japan and Taiwan.
For industrial automation, we are dedicated to providing customers with our platinum-like quality products and services.
