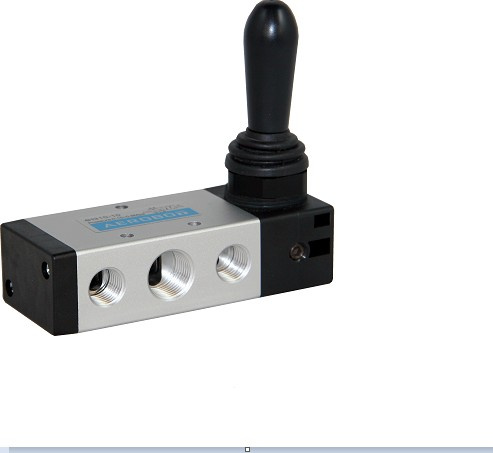

Hand Lever Valve (4H310-08)
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
4H310-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Fluid: |
Compressede Air Filtered by 40um Filter |
| Acting Mode: |
Manual Control Direct Acting Model |
| Port Size: |
1/8" |
| Valve Type: |
5/2 Way |
| Operating Pressure: |
0-0.8mpa |
| Proof Pressure: |
1.5mpa |
| Working Temperature: |
-20-70degree |
| Material: |
Aluminum Alloy Body, HNBR Sealing |
| Weight: |
150g |
Product Description
Aerobot would like to provide you with quality products at very competitive prices. Product details shown as followings:
4H series 5 port hand lever valve,
* 5 port 2 position.
* Port size: 1/8", 1/4", 3/8". NPT, PT, G thread are all available.
Lead time: Within 7 to 15 days after payment.
4H series hand valves are in good quality and appearance.
They are widely used in automatic industry, easy to control and maintain.
|
Model |
4H210-06 |
4H210-08 |
4H310-08 |
4H310-10 |
|
Fluid |
Air |
|
Type of actuation |
5 port 2 position |
|
Port size |
In=Out=Exhaust=1/8 |
In=Out=1/4 Exhaust=1/8 |
In=Out=Exhaust=1/4 |
In=Out=3/8 Exhaust=1/4 |
|
Orifice size |
14mm2(Cv=0.78) |
16mm2(Cv=0.89) |
25mm2(Cv=1.39) |
30mm2(Cv=1.67) |
|
Operating pressure range |
0~0.8Mpa |
|
Ambient and fluid temperature |
-20~70°C |
|
Lubrication |
Not required |
|
Operating angle |
± 15° |
Ningbo Aerobot Automatic Industrial Co., Ltd. is a rapidly-growing company for pneumatic components. Aerobot is located in Ningbo, China, near Ningbo International Airport, with standard workshops of more than 10, 000 square meters, and with total investment of RMB 60 million.
We are specializing in designing, developing and producing pneumatic valves, pneumatic cylinders and pneumatic auxiliary components, which are used widely in automatic industries of mechanical manufacture, automobile, metallurgy, electronics, environmental protection, light industry, textile, medical equipment, printing and packaging etc. Aerobot also provides customer-specific solutions according to customers' requirements.
With the goal of promoting automatic level of Chinese manufacturing, we've got the latest imported processing equipments, brought in the advanced R&D ideas sourced from Europe, and adopted the strict management of enterprises of Japan and Taiwan.
For industrial automation, we are dedicated to providing customers with our platinum-like quality products and services.
