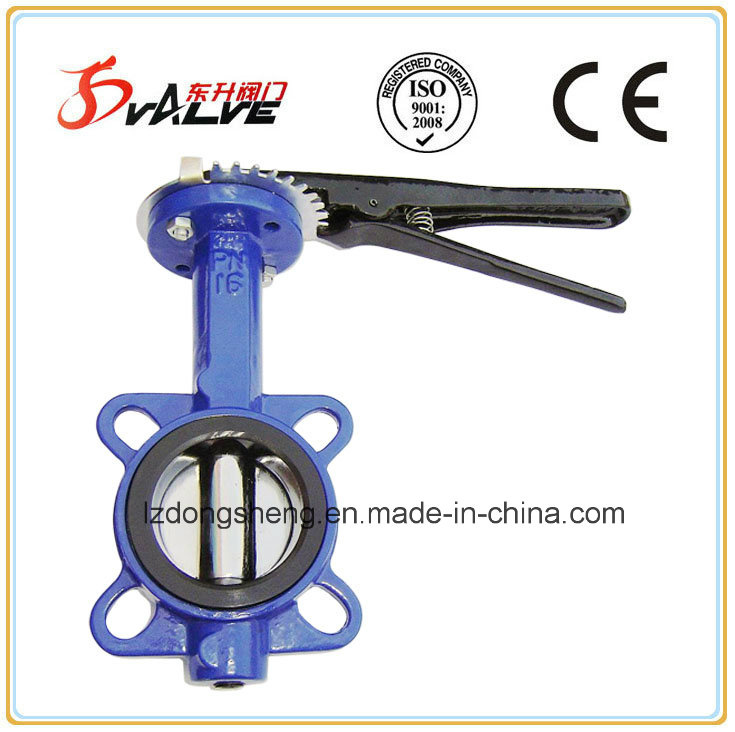

Cast Iron Wafer Butterfly Valve Pn16 Gg25
| Price: |
US $ 5.6/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
DSBV-105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Range: |
Dn50-Dn300 |
| Type: |
Lever Operated |
| Testing: |
Conforms to API 598 |
| Connection Form: |
Wafer |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Household Usage |
Product Description

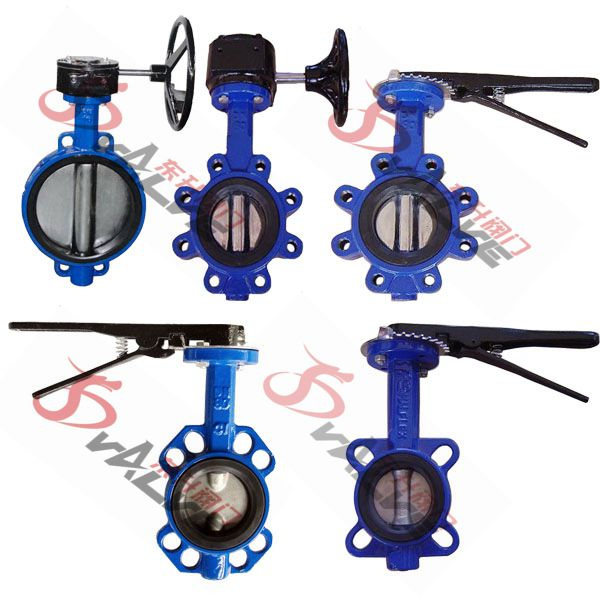

Butterfly valve - Cast Iron, International, Wafer Type
The valve performs well in commercial applications including HVAC and hot/cold potable water.
DESCRIPTION:
Working pressure: 1.0 / 1.6Mpa
Working temperature: NBR 0 ° C to 80 ° C; EPDM -10 ° C to +120 ° C
Face to face: DIN3202 K1
The flange can be as per: DIN2501 PN10/16; BS4504 PN10/16; BS10 TABLE D/E; JIS2220 10K/16K; ANSI 125/150.
Testing: DIN3230, API598
Medium: Fresh water; Seawater; Food stuff; All kinds of oil etc.
MATERIAL LIST:
| NO. | Part | Meterial |
| 1 | Circlip | 65MN |
| 2 | Lock Piece | Steel |
| 3 | Sleeve | PTFE |
| 4 | O-ring | NBR |
| 5 | Shaft | SS304 |
| 6 | Body | Cast Iron GG25 or Ductile Iron GGG40 |
| 7 | Seat ring | NBR or EPDM |
| 8 | Disc | GGG40; SS304 or SS316 |
| 9 | Shaft | SS304 |
| 10 | Screw | Steel |
Laizhou dongsheng valve co.,Ltd is a professional valve plant, is a collection of research and development, design, the manufacture, the sale of integrated specialized company. Our main products are series of check valves, including all kinds of single disc swing check valve, double disc swing check valve, flange and threaded ball check valve, flange and wafer silent check valve, stainless steel lift check valve, diaphragm valve, ball valve and butterfly valve etc.

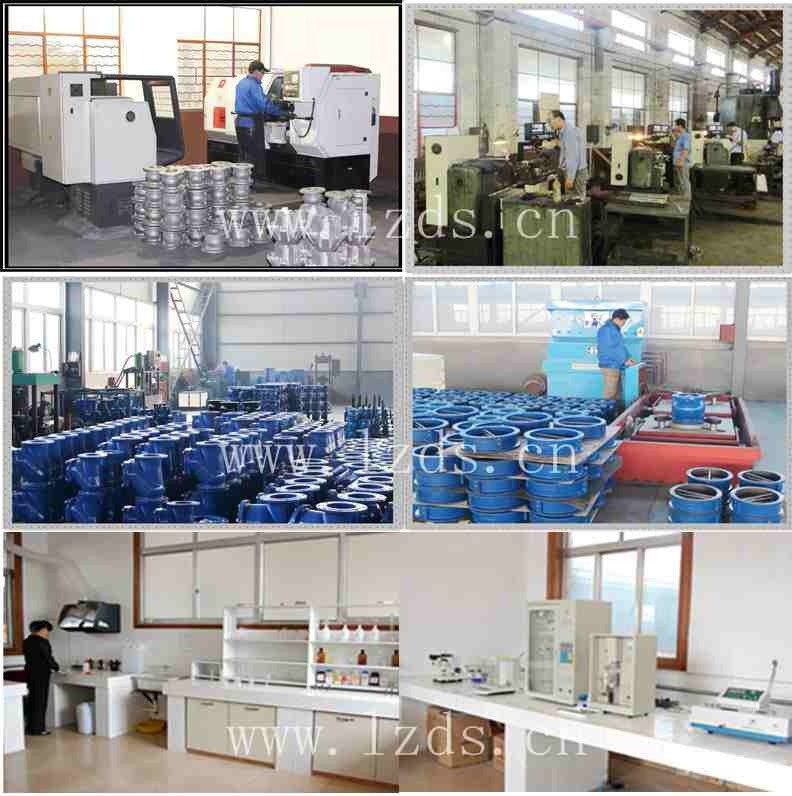

We hold a set of scientific and strict management system, strong technical force, advanced processing equipment and reasonable technical progress, high technology and quality technicists and workers. We have 200 employees, and our factory area is 30000 square meter. We always hold "Do to the quality of survival, to the credibility of development.", so we produce every product carefully and treat every customer sincerely. Our products are used to open and close the pipeline of oil, chemical, water, gas and food etc. Our products are exported mainly to Europe, America, Africa, Southeast Asia, the Middle East and Russia etc. Our products are praised by foreign and domestic customers.
We own good quality certificated by ISO9001 and CE. Welcome friends from home and abroad to visit us. And we look forward to having a sincere and favorable cooperation with you.
Laizhou dongsheng valve co.,Ltd is a professional valve plant, is a collection of research and development, design, the manufacture, the sale of integrated specialized company. Our main products are series of check valves, including all kinds of single disc swing check valve, double disc swing check valve, flange and threaded ball check valve, flange and wafer silent check valve, stainless steel lift check valve, diaphragm valve, ball valve and butterfly valve etc.
We hold a set of scientific and strict management system, strong technical force, advanced processing equipment and reasonable technical progress, high technology and quality technicists and workers. We have 200 employees, and our factory area is 30000 square meter. We always hold "Do to the quality of survival, to the credibility of development.", so we produce every product carefully and treat every customer sincerely. Our products are used to open and close the pipeline of oil, chemical, water, gas and food etc. Our products are exported mainly to Europe, America, Africa, Southeast Asia, the Middle East and Russia etc. Our products are praised by foreign and domestic customers.
We own good quality certificated by ISO9001 and CE. Welcome friends from home and abroad to visit us. And we look forward to having a sincere and favorable cooperation with you.
