Full Flow Foot Valves of Check Valve Pn10/16
| Price: |
US $ 1.0/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
FV-010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Range: |
Dn50-Dn300 |
| Filtering Net Material: |
Wcb/Ss304 |
| Valve Body Material: |
Casting |
Product Description

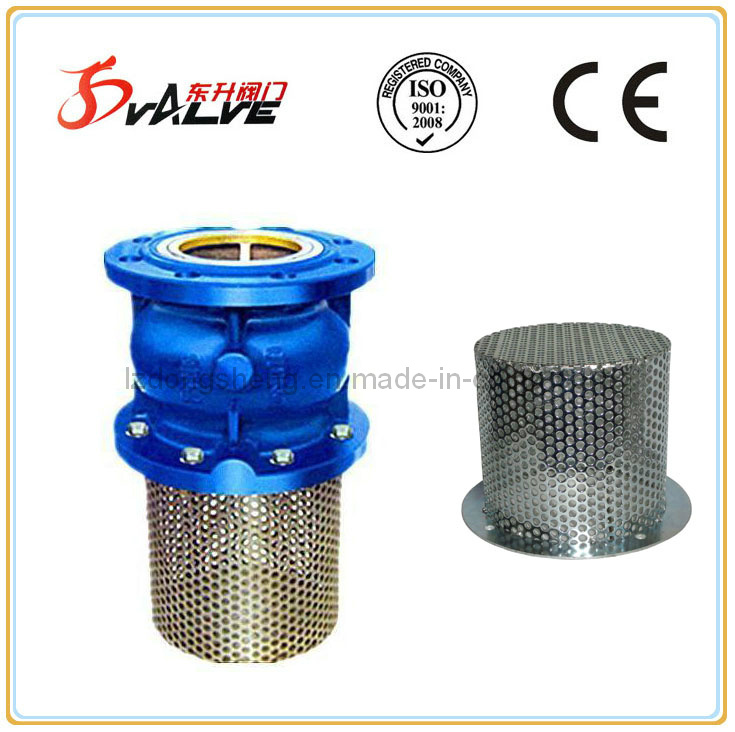

FOOT VALVE/SILENT CHECK VALVE FLANGED
AXIAL DISC CHECK VALVE PN10/16
APPLICATION:
1. Pumping stations and networks for clean water distribution, irrigation and water treatment
2. Silencing check valve role is only allowed to medium flows in one direction the direction and stop the flow
3. Working Pressure: 1.6Mpa
4. Test Standard: API598 DIN3230
5. Flange Standard: EN1092-2 PN10/16
|
Item |
Description |
Material(Optional) |
|
1 |
Seat |
Ductile Iron GGG40 |
|
2 |
Body |
Cast Iron GG25 / Ductile IronGGG40 |
|
3 |
Bushing |
PTFE |
|
4 |
Spring |
Stainless steel |
|
5 |
O-Ring |
NBR / EPDM / VITON |
|
6 |
Disc |
Ductile Iron GGG40/Brass |
