Manual 150lb/Pn10/Pn16 CF8/CF8m Flange Type Butterfly Valve
| Price: |
US $ 20/Piece |
| Trade Terms: |
FOB,DAT,CPT |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2"-48" |
| Class: |
150lb,Pn10,Pn16 |
| Body: |
Ggg40,Ggg50,Wcb |
| Disc: |
Ggg40,Ggg50,Wcb,Ss316,Ss304 |
| Seat: |
NBR,EPDM,PTFE,Teflon, |
| Connection Form: |
Wafer |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Industrial Usage |
Product Description

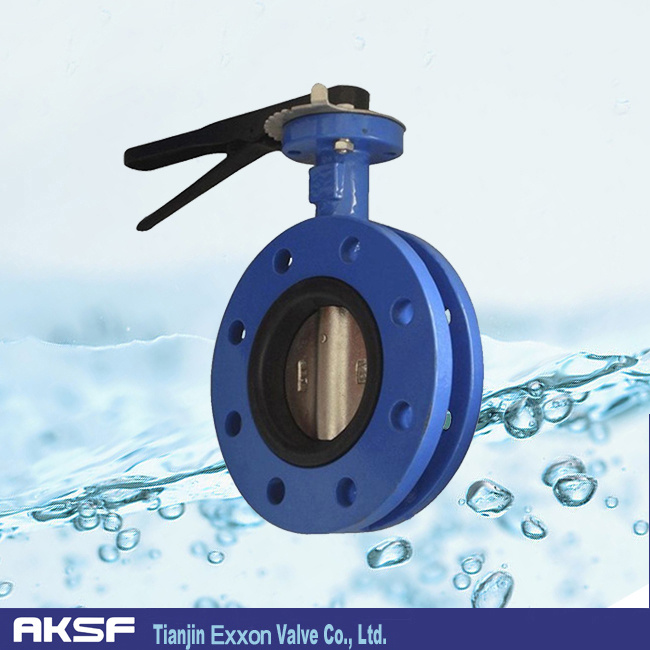

Flange Type Butterfly Valve
Type Available: Flanged type.Sizes Available: DN50mm to DN1200mm (2" to 48")Pressure Range: PN (MPa): 1.0, 1.6, 2.0, 2.5Materials Standard: WCB,GGG40,GGG50 etc.Basic Design: ANSI/AWWA C504Face to Face Dimension: BS5155 Short, ISO5752 (Series 13), DIN 3202 F16Inspection & Testing: API 598,Flanged End Dimension: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16,JIS B2212/2213, BS 10 Table D, BS 10 Table ETop flange: ISO 5211Suitable Mediums: Fresh water, sea water, gas, oils, acids, alkalis, etcSuitable Temperature: -26-82CDesign characters:Correcting holes are made on flange according to standard, easy correcting during the installation.Through-out bolt or one-side bolt used. Easy replacing and maintenance.Shaft and disc connected by pin, torque screw or non pin, to achieve the opening and closing.
Tianjin Exxon Valve Co., Ltd. Offers several styles of Rubber Lined Concentric Butterfly Valves, Resilient Seated Gate Valves and Soft Seated Dual Plate Check Valves to meet your requirements. We would like to help you choose the correct valve style according to the process conditions and system needs of the valves.
Our company has a comprehensive computer-aided design systems and sophisticated computer numerically equipment in production, processing and testing. We are strictly according to the international quality system standard ISO9001 for production.
We specialize in soft sealed butterfly valves and gate valves of wafer type, flange type and groove type, which are widely applied in petroleum, chemical, natural gas, food, water supply and other industrial areas.
The valves of EXXON are highly appreciated at home and abroad. Even though there is a fierce competition in the market nowadays, EXXON obtains a steady and efficient development being guided by our manage principle, that is, guided by the science & technology, guaranteed by the quality, adhere to sincerity and target at excellent service...
We persist in the pursuit of excellence, strive to build EXXON brand. Great effort will be made to achieve common progress and development with all of you and creating a better future.
Tianjin Exxon Valve Co., Ltd. Offers several styles of Rubber Lined Concentric Butterfly Valves, Resilient Seated Gate Valves and Soft Seated Dual Plate Check Valves to meet your requirements. We would like to help you choose the correct valve style according to the process conditions and system needs of the valves.
Our company has a comprehensive computer-aided design systems and sophisticated computer numerically equipment in production, processing and testing. We are strictly according to the international quality system standard ISO9001 for production.
We specialize in soft sealed butterfly valves and gate valves of wafer type, flange type and groove type, which are widely applied in petroleum, chemical, natural gas, food, water supply and other industrial areas.
The valves of EXXON are highly appreciated at home and abroad. Even though there is a fierce competition in the market nowadays, EXXON obtains a steady and efficient development being guided by our manage principle, that is, guided by the science & technology, guaranteed by the quality, adhere to sincerity and target at excellent service...
We persist in the pursuit of excellence, strive to build EXXON brand. Great effort will be made to achieve common progress and development with all of you and creating a better future.
