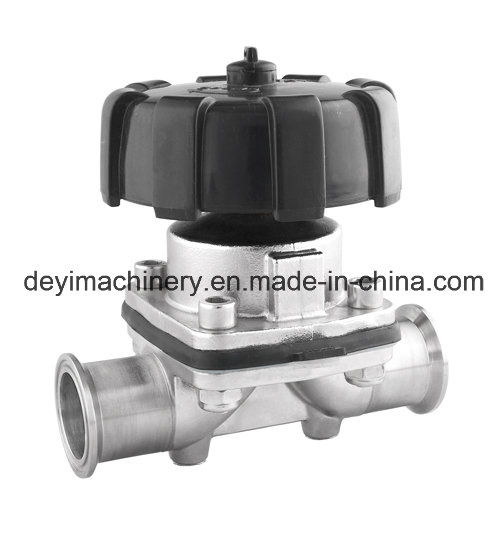

Stainless Steel Sanitary Diaphragm Valve (DY-V09)
| Price: |
US $ 9-10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DY-V09 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valve Body Material: |
Ss316L |
| Availably Standard: |
3A/Bpe/DIN/ISO/Idf/SMS |
| Seal Material: |
PTFE + EPDM (Double Layer) / EPDM / Silicon / FPM |
| Availably Size: |
1"-3",Dn20-Dn65 |
| Operated: |
Manual,Pneumatic for Pulse Jet Diaphragm Valve |
| Availably Structure: |
Straight, Tee, U-Type, Tank Bottom |
| Max. Working Pressure: |
10bar |
| Max. Working Temperature: |
120 Degree C |
| Availably Connection: |
Clamp/Weld/Thread/Special Connection |
| Application Scope: |
Dairy,Food, Beverage, Pharmacy, Cosmetic, etc |
| Actuator: |
Manual |
| Material: |
Stainless Steel |
| Structure: |
Through Way Diaphragm Valve |
| Standard: |
DIN |
| Connection: |
Triclamp Diaphragm Valves |
| Function: |
Manual Type |
Product Description
Product Description
Products Name:Stainless Steel Sanitary Diaphragm Valve (DY-V09)
Diaphragm valves:Manual or air actuated.are specially designed for hygienic and asepsis processes in pharmacy industry.
This valve is excellent for controlling as well as on/off fluid.
Diaphragm seals the valve body and seat.There is no way to contact the environment.So this valve is suitable for asepsis process.
When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.
So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.
Technical Datas
Valve Body Material |
SS316L |
Availably standard
| 3A/BPE/DIN/ISO/IDF/SMS |
| Availably size |
1"-3",DN20-DN65 |
Seal Material |
PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON) |
Availably connection |
Clamp/weld/thread/special connection |
Operated
| Manual,Pneumatic |
Max. Working Pressure |
10Bar |
| Availably structure |
Straight, tee, U-type, tank bottom |
Max. Working Temperature |
120 degree C |
Application scope |
Dairy,food, beverage, pharmacy, cosmetic, etc
|
Wenzhou DeYi Machinery is a high-tech science and technology enterprise which integrates design, development, manufacture, installation and provides complete turnkey project. Specializing in the manufacture and sale of bio-pharmaceutical, food, dairy, beer and beverage engineering equipments and various sorts of pressure vessels and non-standard equipment to meet the needs of users, such as stainless steel tanks, Chinese medicine extractors, concentration and evaporation equipment, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on. We always pursue the goal of "excellence and innovation". We research and develop new processes and designs so as to comply with cGMP and FDA requirements.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the today's business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
Choose DeYi, will get better price, good service and profit!
Wenzhou DeYi Machinery is a high-tech science and technology enterprise which integrates design, development, manufacture, installation and provides complete turnkey project. Specializing in the manufacture and sale of bio-pharmaceutical, food, dairy, beer and beverage engineering equipments and various sorts of pressure vessels and non-standard equipment to meet the needs of users, such as stainless steel tanks, Chinese medicine extractors, concentration and evaporation equipment, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on. We always pursue the goal of "excellence and innovation". We research and develop new processes and designs so as to comply with cGMP and FDA requirements.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the today's business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
Choose DeYi, will get better price, good service and profit!
