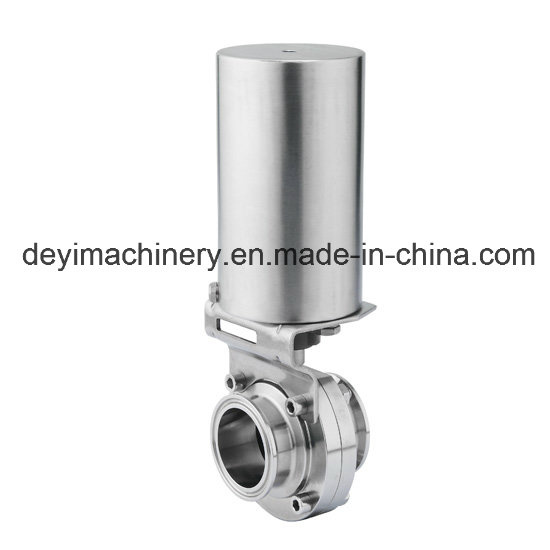

Stainless Steel Sanitary Pneumatic Air Operated Butterfly Valve
| Price: |
US $ 12.5-14/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DY-V013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Standard: |
DIN, 3A, SMS, Rjt,ISO,Idf |
| Flow Medium Parts: |
304, 304L, 316L (1.4301, 1.4307, 1.4404) |
| Port Size: |
Dn10-150 or 1/2"-150 |
| Way Of Connection: |
Butt-Welded, Sanitary Clamp, Male and Female Threa |
| Gasket: |
EPDM/Vmq/FPM |
| O Type Ring: |
NBR Diaphragm and Standard Diaphragm |
| Working Pressure: |
10bar (145psi) |
| Temperature Range: |
-20 Degree Celsius to 120 Degree Celsius |
| Processing Machine: |
Forge Processing, Advance CNC Machine |
| Working Principle: |
Remote-Controlled Operation by The Driving Gear or |
| Connection Form: |
Welding |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Household Usage |
Product Description
Product Description
Product Name:Stainless Steel Sanitary Pneumatic Air Operated Butterfly ValveButterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.Technical Parameters| Standard | 3A,SMS,DIN,ISO,RJT,IDF |
| Product wetted steel parts | AISI304/AISI316L | Provided with material inspection report |
| Other steel parts | AISI304 |
| Size | 1/2"~6",DN10~DN150 |
| Seal material | EPDM/VMQ/FPM | All seals material comply with FDA21CFR117.2600 |
| Working pressure | ≤10bar(145psi) |
| Supply pressure for air actuator | 5~8(0~116psi) |
| Working temperature | EPDM:-14~248ºF(-10~120ºC) |
| VMQ:-58~356ºF(-50~180ºC) |
| FPM:22~446ºF(-30~230ºC) |
| Other materials are avaible upon request |
| Sterilization temperature | 302ºF(150ºC,max 20min) |
| Outside surface treatment | Ra16~32uin(o.4~0.8um) |
| Inside surface treatment | Ra32~64uin(o.8~1.6um) |
| Connetion ends | butt-weld,clamped ends,male ends, flange ends |
| Pneumatic head | Normally closed(NC)-Air to open,spring to close |
| Normally open(NO)-Air to close,spring to open |
| Air to air(AA)-Air to open,air to close |
Options
1.The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3.Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4.Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5.Control: position sensor, C-top controller, C-top controller (AS-I)
Design Features
1.Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2.Available in sizes from DN25 / 1" to DN300 / 12"
3.Multiposition handles can be used for valves up to DN100 / 4";
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5.pneumatic actuator and electric actuator are interchangeable.
6.Seals comply with FDA 21CFR 177. 2600.
7.The valve body can be customized with a wide selection of different connections.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome |
