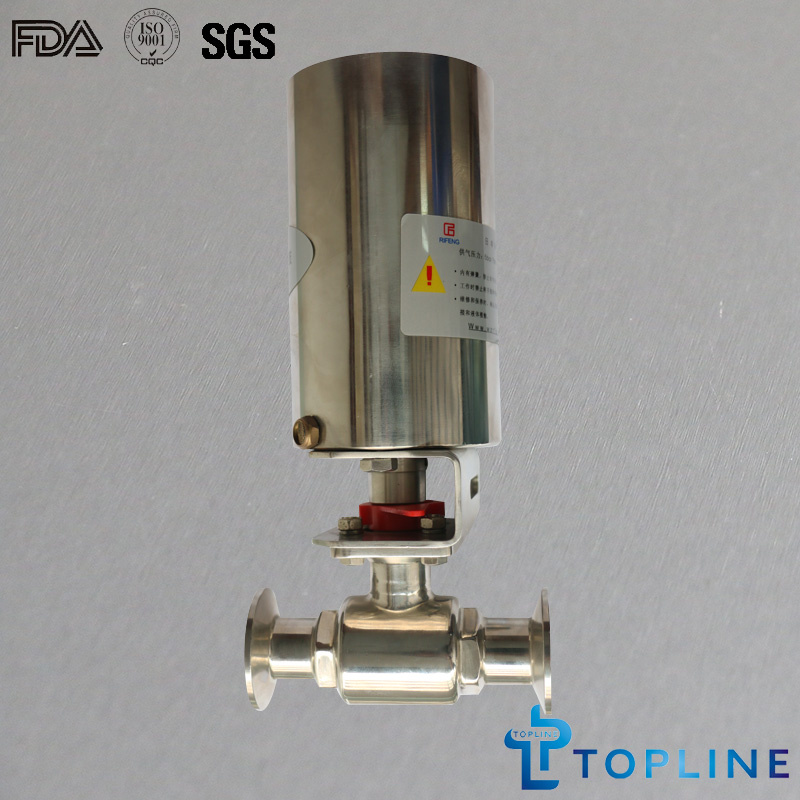

Stainless Steel Sanitary Pneumatic Ball Valve with Clamps Ends
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TPSBALLV018 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn25-Dn100&1/2"-4" |
| Material: |
Stainless Steel |
| Channel: |
Straight Through Type |
| Application: |
Food, Beer, Beverage, Pharmacy |
| Connection Form: |
Tri-Clamp |
| Nominal Pressure: |
10bar |
| Structure: |
Two Way |
| Type: |
Two Way |
| Temperature: |
120deg |
Product Description
*Sanitary Stainless Steel Tri-Clamp Ball valve
*Material: AISI304, AISI316L
*Standard: DIN/SMS/3A/ISO/IDF/RJT
*Size: DN25-DN100&1/2"-4"
Design and Features
*Free of maintenances
*Compact and Protable
*Small operating torque
*Gasket according to PTFE FDA 177.2600
*Handle can be installed by the side of the valve body, no matter any of flow direction
*Connections: threaded, tri-clamp, welding
*The valve can match with pneumatic or electric actuators
For more detail information, pls don't hesitate to contact us. We can also produce according to your drawings and specifictions
| Connecting Ends | clamped |
| Standard | DIN, SMS, 3A, ISO, IDF, RJT, BS |
| Available Sizes | DN25-DN100, 1"-4" |
| Metal Material | Parts in contact with fluid | 304, 316L (DIN 1.4301, 1.4304) Forging |
| Other parts | 304 |
| Seal Material | Options | PTFE |
| Operation | Manual | Pulling handle |
| Pneumatic | NC, NO, A/A |
| Electric |
|
| Pressure | Max. working pressure | 10 bar |
| Air supply pressure | 5~8 bar |
| Surface Finish | Internal surface | Ra < 0.8 μm |
| External surface | Ra <1.6 μm |
As a manufacturer, TopLine Company specialize in the supply of the following sanitary flow control components:
Stainless Steel Sanitary valves ( butterfly, check, ball, CPM, diaphragm, sampling, seat valves, ect)
Stainless Steel Sanitary fittings ( elbow, tee, clamp, pipe holder, ferrule, union, manway, cleaning ball, sight glass, filter, etc)
Stainless Steel Sanitary pump ( centrifugal, rotary lobe, CIP)
Stainless Steel Pipe Series( stainless steel Sanitary Welding pipe, Seamless pipe)
Topline services for food, beverage, dairy, chemical, bioth, pharmaceutical, etc...
