| Prod Model: |
STF-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Distribution of Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Pilot Membrane Structure |
| Power Supply: |
DC Solenoid Valve |
| Application: |
Water Industrial Usage |
Product Description

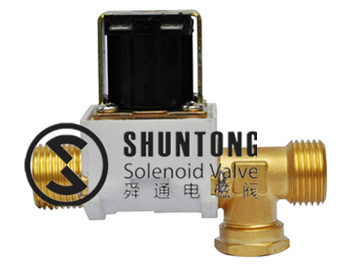

Solenoid Valve
Air Water Solenoid Valve
Connection thread size: 1/2 in(M)
Medium temperature: 1º C~80º C
Working pressure: 0.012~0.8MPa
Voltage: DC 12V 24V 220V
|
Model |
STF-7 |
|
Action way |
Pilot type |
|
Type |
NC self-holding (at impulse voltage) |
|
Working pressure |
0.012MPa-0.8MPa |
|
Connection way |
Φ 15 male thread inlet & outlet |
|
Applicable medium |
Water |
|
Valve body material |
Plastic valve body, copper joint |
|
Medium temperature |
0-88 o C |
|
Environment temperature |
0-88 o C |
|
Rated voltage |
AC220V, AC110V, DC110V, AC24V, DC24V, AC12V, DC12V, DC9V |
|
Variable voltage of supply voltage |
-10%~10% |
|
Insulation resitsance |
Tested by DC500V megohmmete for 1 min, the insulation resistance should ≥ 100M |
|
Watertight performance |
Hydrostatic pressure 0.02Mpa, leakage ratio< 0.1mL/min |
|
|
|
Hydrostatic pressure 0.03~0.8Mpa, leakage ratio 0mL/min |
|
Hydraulic pressure withstand |
Withstand hydrostatic pressure of 1.2MPa for 5min, no unbroken, deformation or outside leakage |
|
Reliability |
0.01~0.02MPa, make and break for 10s respectively, lasting 1h, the check valve should be unblocked. |
|
Flow characteristics |
Pressure 0.02Mpa Flux > 3L/min; Pressure 0.1Mpa Flux> 8L/min; |
|
|
|
Pressure 0.3Mpa Flux > 13L/min; Pressure 0.8Mpa Flux > 25L/min |
|
Across layers insulation |
Withstand high voltage pulse for 2s, it should be normal. |
|
Continuously energized |
Energize for 12h, but not connect through the water, the valve should be no deformation, and the coil should not be burned; |
|
Withstand voltage |
The acceptable high-voltage power between electric conduction and outer without electrified metal Withstand AC1500V, s50Hz for 1min, no flashover or breakdown; Withstand 1800V, 50Hz for 1s, no flashover or breakdown; |
|
Non-return function |
Yes |
|
Filtering function |
Built-in filter screen |
|
Adjustment function |
No |
|
Angle between coil and valve body |
360, 270, 180, 90 |
|
Power supply connection way |
Lead or Inserting type, adopting 6.3 plug spring. |
