| Prod Model: |
2L-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Pilot Operated |
| Connection Form: |
Thread |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Water Industrial Usage |
Product Description
Solenoid Valve
Steam Solenoid Valve

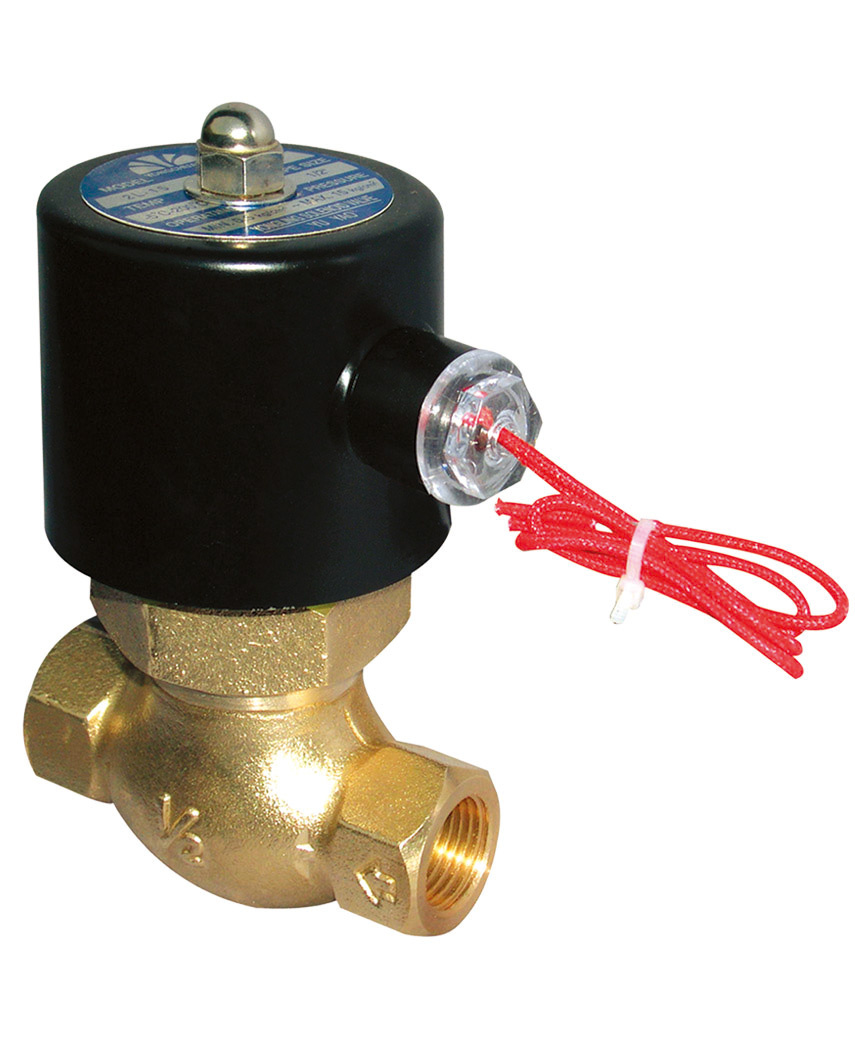

The model of Steam Solenoid Valve: 2L-15
Normally Closed
Medium: Steam and Hot Water, Oil, etc.
Temperature: PTFE Seal: , -20 to 180
VITON Seal: -10 to 150
Pressure: 2L: 0.03MPa ~ 1.6MPa
Port Size: 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
Port Thread: BSPP, BSPT, NPT, UNF
Orifice (mm): 12, 15, 20, 25, 32, 40, 50
Voltage: DC - 12V, 24V
AC - 24V, 120V, 240V@60Hz; 110V, 220V@50Hz
Tolerance: +/- 10%
Coils: 35VA(AC), 30W(DC), IP65, 100%ED
Characteristic:
1. Pilot operated piston construction with low power consumption
2. Seal serves longtime at steam ambient;
3. Used for long-time working in pipeline system.
|
Port Size |
Orifice |
Cv |
Min Pressure |
Max Pressure |
Seals Material |
Body Material |
|
3/8" |
12 |
4.5 |
0. 03MPa |
1.6MPa |
PTFE,VITON, |
Brass, Stainless Steel |
|
1/2" |
15 |
4.5 |
0. 03MPa |
1.6MPa |
PTFE,VITON, |
Brass, Stainless Steel |
|
3/4" |
20 |
9.3 |
0. 03MPa |
1.6MPa |
PTFE,VITON, |
Brass, Stainless Steel |
|
1" |
25 |
12 |
0. 03MPa |
1.6MPa |
PTFE,VITON, |
Brass, Stainless Steel |
|
1 1/4" |
32 |
24 |
0. 03MPa |
1.6MPa |
PTFE,VITON, |
Brass, Stainless Steel |
|
1 1/2" |
40 |
29 |
0. 03MPa |
1.6MPa |
PTFE,VITON, |
Brass, Stainless Steel |
|
2" |
50 |
48 |
0. 03MPa |
1.6MPa |
PTFE,VITON, |
Brass, Stainless Steel |
